TESCO Transockets

Built to specification. Delivered in four weeks.

Integrated CT metering solutions for commercial and industrial service.

TESCO Transockets combine meter sockets, current transformers (CTs), test switches, and wiring into a single, utility-ready assembly. Factory integration streamlines installation and commissioning, reduces field wiring errors, and delivers consistent, utility-grade performance in one enclosure helping utilities save time and avoid costly truck rolls.

Key Features:

  • Integrated Metering Assembly – Socket, CTs, test switch, and wiring in one enclosure
  • Multiple Terminal Configurations – 4, 5, 6, 8, 10, 11, 13, and 15 terminals
  • Integrated CT Options – Ratios from 200:5 to 600:5
  • Integrated Test Switch Options
  • Custom Wiring Harnesses – Utility-specific color coding
  • Heavy-Gauge Construction – G90 steel or aluminum
  • ANSI 70 Gray Powder Coat
  • Utility-Specific Designs – Built to program requirements
Category:
×

Description

Standard Transocket Configuration

  • Every TESCO Transocket is engineered as a custom assembly based on utility and application requirements.
  • Typical Starting Point Includes:
  • Integrated meter socket
  • Integrated CTs
  • Integrated test switch
  • Pre-wired harness
  • ANSI 70 gray, heavy-gauge enclosure
  • Utility-standard dimensions (TESCO standard enclosure: 33″ × 24″ × 12″)

Representative engineering drawings shown for illustration. Final designs are configured per customer requirements.

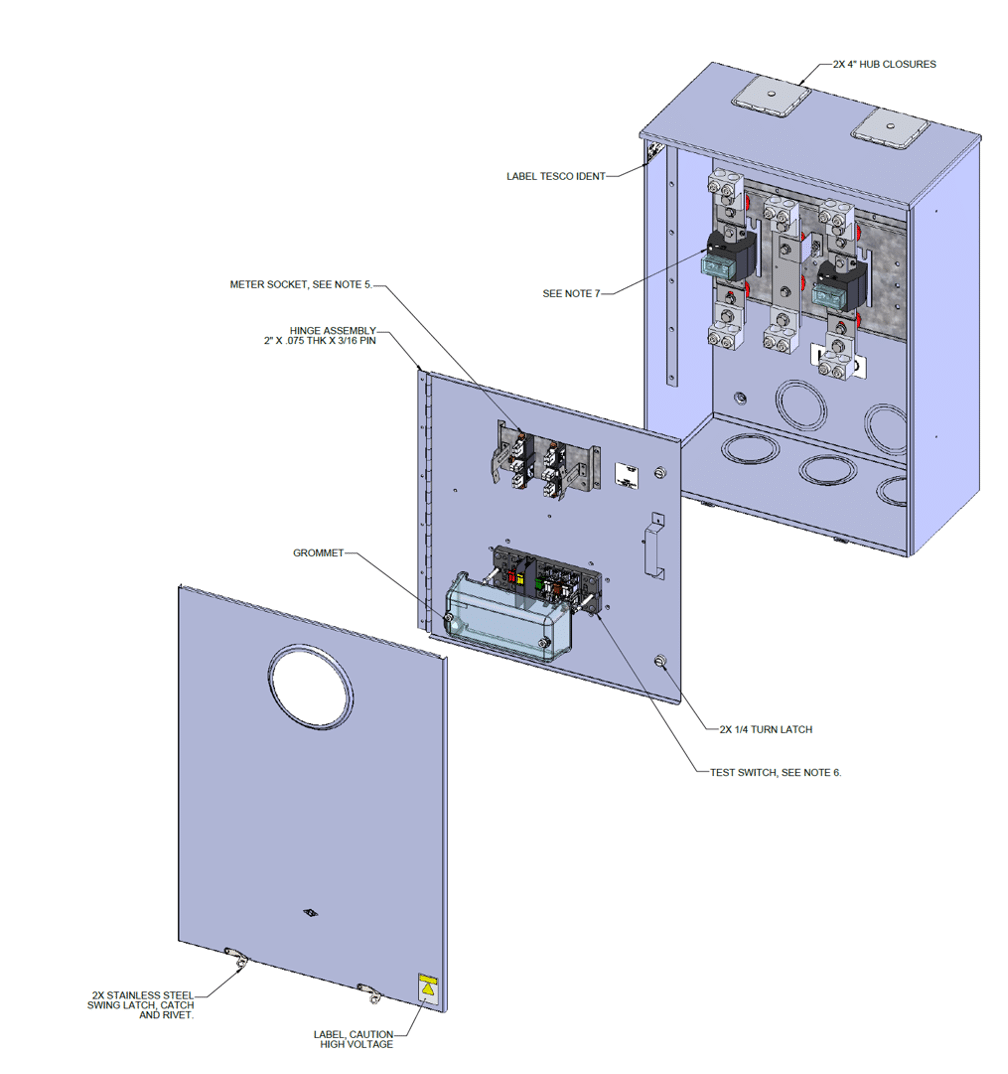

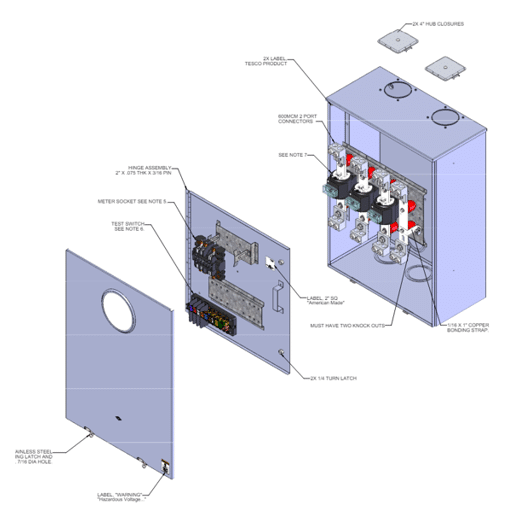

13 Terminal/9S Transocket 6 Terminal/4S Transocket
13 Terminal 9S Transocket 6 Terminal 4S Transocket

Customization Options

Terminal Configurations

4, 5, 6, 8, 10, 11, 13, or 15 terminals

CT Options

  • CT Ratios: 200:5, 300:5, 400:5, 500:5, 600:5
  • CT Accuracy: 0.3, 0.15, 0.15S (⚠ recommend “available options vary by CT selection” until verified)
  • Designed to support multiple CT manufacturers based on customer preference and availability.

Wiring

  • Custom wiring harnesses
  • Utility-specific color coding

Enclosure & Hub Options

  • G90 steel or aluminum
  • Hub sizes: 1″, 1-1/4″, 1-1/2″, 2″

Applications

  • Commercial service
  • Industrial service
  • Large Residential Estates
  • Multi-tenant buildings
  • Utility metering upgrades

We’ll help you finalize the right configuration.

Transockets are engineered per utility and application. Most projects start with a few core requirements — and our team handles the rest.

When you request a quote, our team will help you define:

  1. Meter form and terminal configuration
  2. CT ratios and accuracy requirements
  3. Test switch configuration
  4. Wiring and color-code standards
  5. Enclosure size, material, and hub requirements
  6. Utility program or specification details

Not sure where to start?

Request a quote and our metering specialists will help define the correct transocket configuration for your application.

If you have a photo of the current installation, email it to [email protected]. A clear field image is often the fastest way for our team to confirm compatibility and ensure configuration accuracy.

You may also include any existing specification sheets or legacy drawings. Reference materials help us verify dimensions, mounting requirements, and application details, reducing back-and-forth and preventing ordering errors.
