VT Pack Sockets
Engineered to order with a four-week turnaround.
Safe, compact voltage transformer mounting for instrumentrated metering.
TESCO VT pack sockets provide a clean, utilitygrade solution for mounting voltage transformers in transformerrated metering installations. Available with or without a divider, these sockets integrate seamlessly with TR sockets and test switches.
Key Features:
- Divider and nondivider models
- 13terminal meter block
- Highbridge or lowbridge test switch options
- G90 steel construction
- ANSI 70 gray finish
- Can be designed to accept customer-specified VT packs from approved manufacturers or built to customer voltage transformer specifications
Description
Options & Configurations
- Hub options: none, closure, 1″, 1¼”, 1½”, 2″
- Test switch: molded or cutout
- Wire harness colors: customizable
- Knockouts: standard or custom
Applications
- Voltage transformer mounting
- Transformerrated metering
- Utilityspecific metering programs

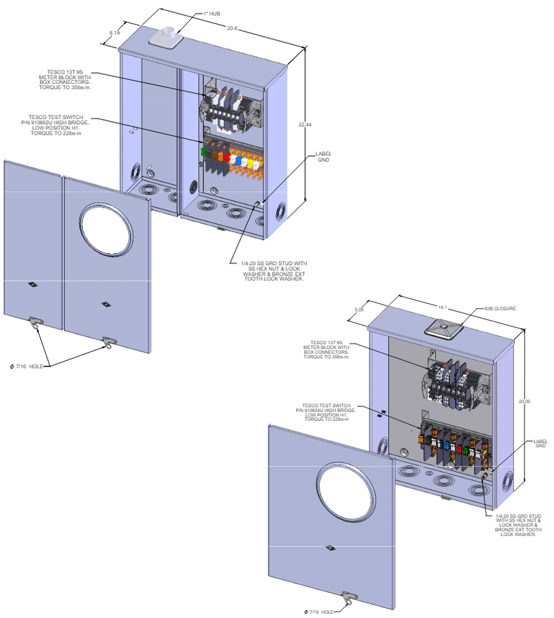

Representative engineering drawings shown for illustration. Final designs are configured per customer requirements.
Not Sure Where to Start?
Most VT Pack Socket configurations begin with just a few basics:
- VT pack manufacturer and rating
- New installation or retrofit
- Field photo (if available)
That’s it.
Our team will help define the remaining details — including divider options, test switch configuration, hub size, knockouts, and wiring preferences.
Whether you need the enclosure prepped for field VT installation or fully mounted and assembled by TESCO, we’ll configure it to match your utility requirements.
If you have a specification sheet, legacy drawing, or photo of the current installation, include it with your quote request. It helps us confirm dimensions and compatibility quickly.
Contact us and our metering specialists will guide you through the configuration process and confirm the correct build for your application.
