TESCO CT Cabinets & Instrument Transformer Enclosures
Engineered to order with a four-week turnaround.
Flexible, durable enclosures for CTs, VTs, and metering equipment.
TESCO CT cabinets are available in G90 steel or aluminum, with multiple mounting options and customizable dimensions. Built to NEMA 3R standards, these cabinets protect critical metering components in harsh environments.
Key Features:
- G90 steel or aluminum
- Single, double, or slipunder doors
- 3point handle or hasp
- CT rails, metal backboards, or plywood
- Custom knockout patterns
- Utilityspecific labeling
Description
Options & Configurations:
- Dimensions: custom or standard
- Material: aluminum or G90 steel
- Finish: gray, green, mill aluminum
- CT mounting: rails, backboard, universal plate
- VT mounting options
- Grounding provisions
Applications
- Commercial metering
- Industrial metering
- Utility metering infrastructure

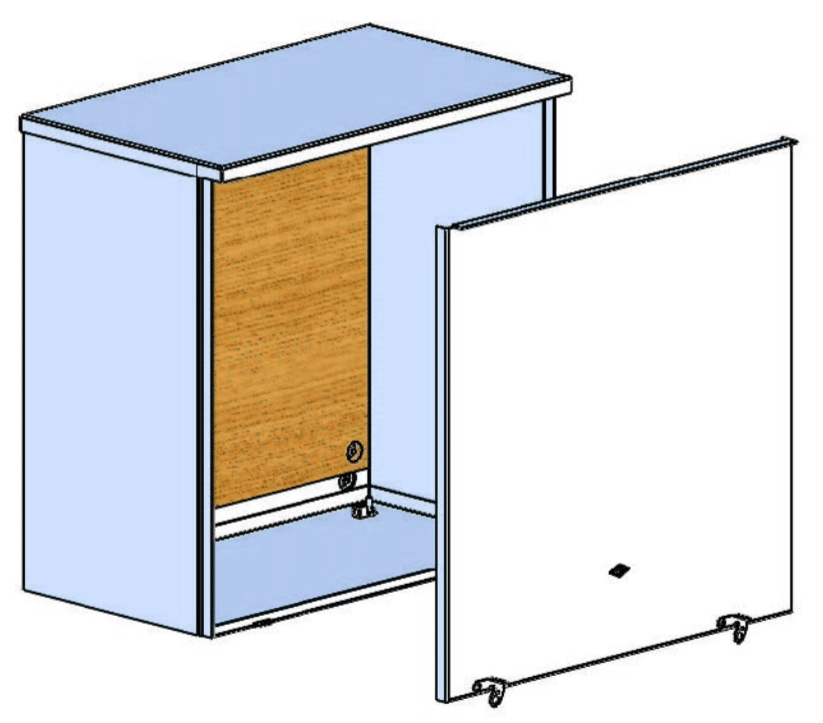

Representative engineering drawings shown for illustration. Final designs are configured per customer requirements.
Not sure where to start?
Request a quote and our metering specialists will help define the correct configuration for your application.
If you have a photo of the current installation, email it to [email protected]. A clear field image is often the fastest way for our team to confirm compatibility and ensure configuration accuracy.
You may also include any existing specification sheets or legacy drawings. Reference materials help us verify dimensions, mounting requirements, and application details, reducing back-and-forth and preventing ordering errors.
