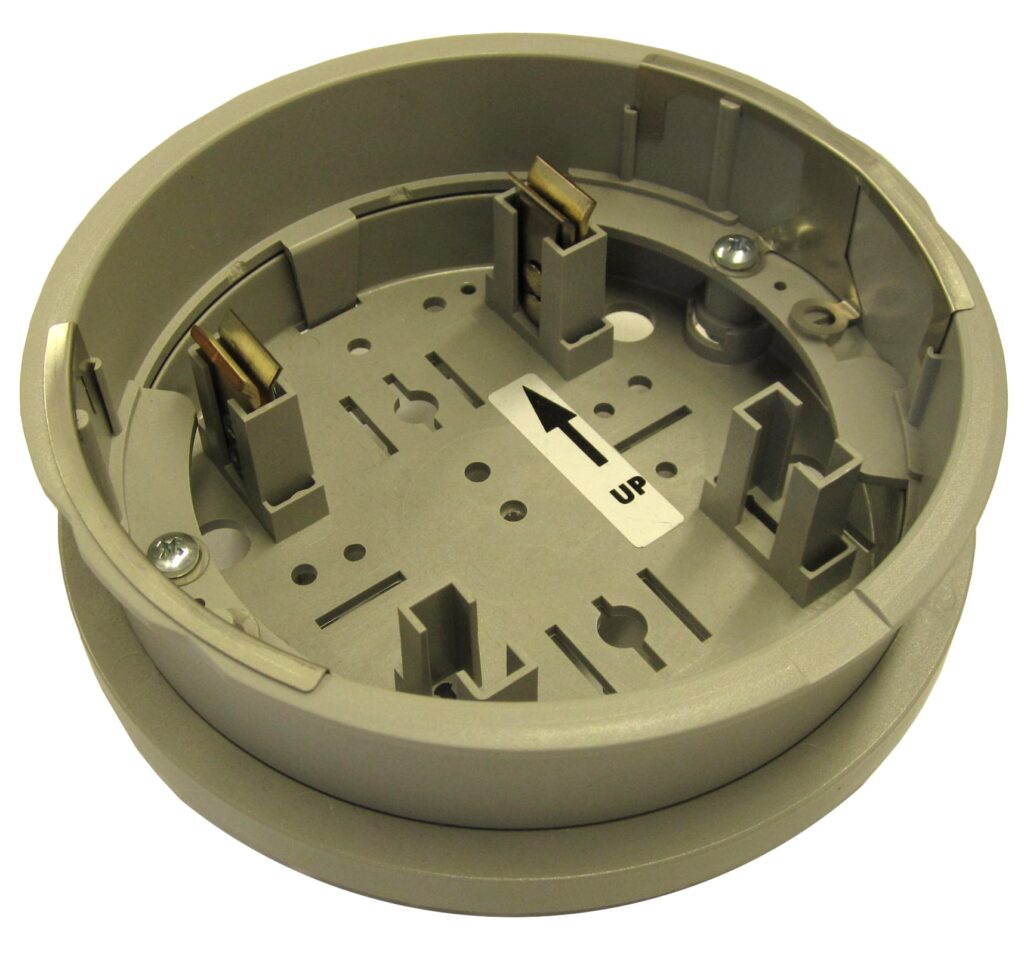

Meter Service Disconnect Adapter (251)
$79.14
Maintain Meter Power While Disabling Load
The TESCO Meter Service Disconnect Adapter 251 provides utilities with a safe and effective way to disconnect the customer load while maintaining meter power. This makes it an ideal solution for AMI and AMR operations or temporary service cutoffs.
Description
TESCO’s Meter Service Disconnect Adapter’s energized design allows the meter to remain powered for data logging and remote communication, even while downstream service is disabled. Built with UV stabilized plastic and fiberglass reinforced polycarbonate, and rated with a UL 94 5VA flame safety standard, the 251 ensures durability and safety in the field.
Key Features:
- Disconnects customer load while preserving AMI and AMR communications
- UV stabilized plastic housing for outdoor use
- UL 94 5VA flame rated construction for safety
- Fiberglass reinforced polycarbonate body for field durability
- One and a half inch stand out dimension for clear field visibility
- Orientation indicators clearly marked for safe and correct installation
Available Variations:
- Catalog 251 Energized Version: Maintains power to the meter using plated copper jaw blades
- Catalog 252 Non Energized Version: Electrically isolates the meter with durable plastic jaw blades
- Catalog 254 Tilted Version: Disconnects customer load while tilting the meter at forty five degrees
For installations in tamper-sealed meter enclosures, technician access may be required.
Specifications
| Unit | Details |
|---|---|
| Model | Meter Service Disconnect Adapter 251 Energized |
| Material | UV stabilized plastic with fiberglass reinforced polycarbonate |
| Flame Rating | UL 94 5VA flame safety standard |
| Design | Maintains meter power with plated copper jaw blades while disabling load side service |
| Stand Out Dimension | One and a half inches for clear visibility in the field |
| Orientation | Clearly marked orientation indicators for proper installation |
| Available Variations |
|
Product Documents
