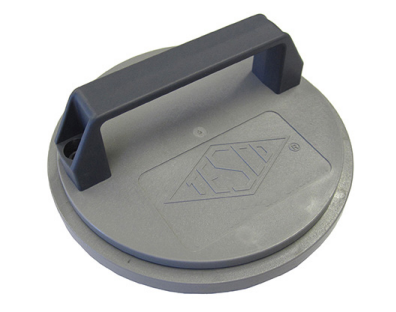

Meter Socket Jumper Covers (277)
$118.62
Safe and Efficient Meter Bypassing—Done the Right Way
Built for safety and ease, TESCO’s Meter Socket Jumper Covers take the place of the electric meter during bypass operations. The jumper blades insert directly into the designated jaws of the socket, allowing for secure bypassing without compromising user safety.
Designed with the field in mind. Built for safety. Trusted by pros.
Description
TESCO Meter Socket Jumper Covers (Catalog No. 277) provide a secure, reliable solution for bypassing meter sockets during maintenance, troubleshooting, or equipment changeouts. Built for utility pros, these rugged covers are made to fit standard meter sockets and withstand tough environments—whether you’re working ringless or ring-style.
Whether you’re performing AMI meter upgrades, troubleshooting, or doing temporary disconnections, the 277 series gives you the confidence to get the job done right.
Clear blade-to-jaw alignment helps simplify installation in the field.
Key Features:
- 320 Amp Rating: Supports Class A meter sockets for heavy-duty applications
- Built-In Handle: Ergonomic and sturdy for easy, safe removal
- Universal Fit: Compatible with ring-style and ringless meter sockets
- Durable Construction:
- UV-stabilized, fiberglass-reinforced polycarbonate
- UL 94-5VA flame rated
- UL 414 approved
Available Models:
- Catalog No. 277-MQB: Specially designed for use with TESCO Next Gen Multi-Position Boards.
- Catalog No. 277-4: A 4-blade jumper cover suited for 1S, 2S, or 12S meter forms.
- Catalog No. 277-6: A 6-blade jumper cover built for 14S, 15S, or 16S meter forms.
Specifications
| Unit | Details |
|---|---|
| Material | Fiberglass-reinforced polycarbonate |
| UV Stabilized | Ensures long-lasting performance in outdoor environments |
| UL 94-5VA Flame Rating | Provides high flame resistance for added safety |
| UL 414 Approved | Complies with industry standards for meter socket covers |
Product Documents
