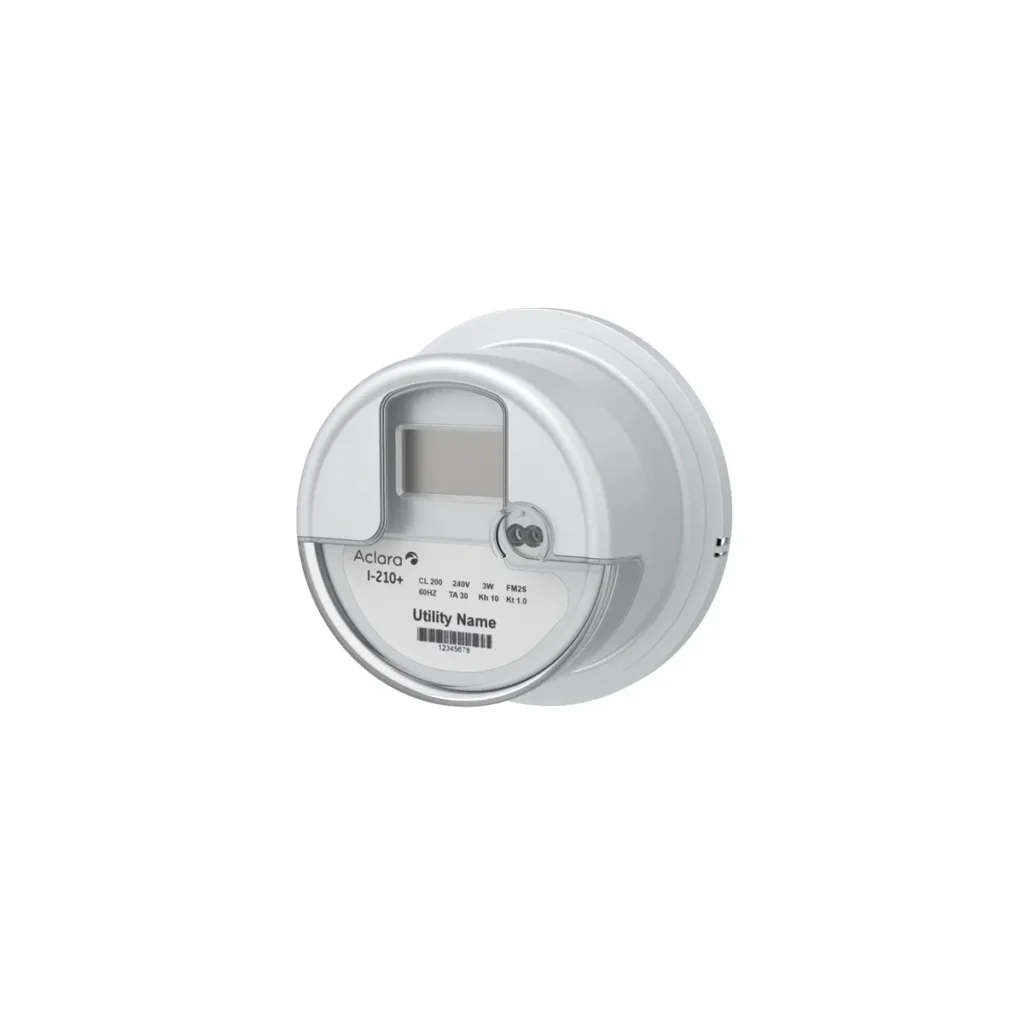

Aclara I-210+C 2S 240V CL200 (non-disconnect)
$99.00
The Aclara I-210+c (2S, 240V, CL200, non-disconnect) is a flagship residential smart grid meter that provides high-precision metrology without the integrated remote service switch.
Technical Specifications:
- Form Factor (2S): Standard single-phase residential 3-wire socket mount.
- Voltage (240V): Rated for North American residential service; typical operating range is ±20% of nominal voltage.
- Class (CL200): Rated for a continuous current of up to 200 Amps.
- Accuracy: Exceeds ANSI C12.20 standards with a typical accuracy within ±0.2%.
- Starting Watts: Highly sensitive, capturing energy consumption as low as 6W at 120V or 12W at 240V.
Description
Key Features:
- Advanced Metrology: Based on the same robust platform as Aclara’s commercial kV2c meters, providing laboratory-grade measurement for residential use.
- Non-Disconnect Configuration: Unlike the “RD” models, this version lacks the internal 200A service switch, making it more cost-effective for installations where remote power shut-off is not required.
- Configurable Metering: Supports multiple energy measurement modes, including Delivered (+), Received (-), and Net metering for homes with renewable energy.
- Data Profiling: Capable of recording up to 8 channels of Load Profile data and supports Time-of-Use (TOU) recording with four tiers and four seasons.
- Power Quality Monitoring: Logs voltage sags, swells, and event logs for specific case investigations.
- Tamper Detection: Includes standard tools to identify meter removal, wiring changes, or billing issues.
Usage and Applications
- Standard Utility Billing: Primarily used for general residential accounts where the utility does not require remote service management.
- Solar/Net Metering: Frequently deployed for distributed generation (rooftop solar) to monitor bidirectional energy flow.
- AMI Integration: Compatible with major AMI technologies, including Sensus FlexNet, Itron GenX, and Landis+Gyr Gridstream, allowing for two-way communication and over-the-air firmware updates.
