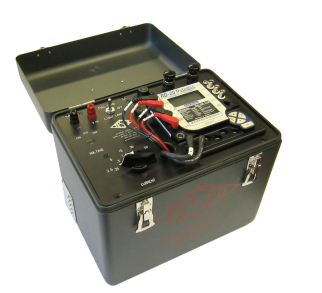

Field Test Kit GA Series (GA-50)
The GA-50 Field Meter Test Kit is a compact, high-performance field testing solution engineered for reliability and convenience. Weighing just 25 lbs., this test kit integrates a digital reference standard and artificial load into a rugged, powder-coated aluminum case, ideal for utility field crews who need lightweight, reliable equipment.
Designed for flexibility, the GA-50 includes a 120/240/277/480V voltage selector with an OFF position, allowing the load to be de-energized for meter adjustments without disconnecting leads. Current selection is handled through a durable rotary switch that places full and light load ranges adjacent to each other for intuitive transitions.
Description
As with all TESCO field test equipment, the internal circuitry is optimized for simplicity—automatically engaging the proper standard coil for each test setting. The GA-50 is a dependable, easy-to-use solution for open-link meter testing and is compatible with a wide array of TESCO accessories for complete field support
Key Features
- Lightweight and portable: only 25 lbs. including leads and standards
- Rotary switch for selecting voltage and current, no lead changes required
- Adjacent full/light load switch positions for fast transitions
- Permanently connected artificial load and Radian digital standard
- Continuous duty rated
- Compact size: 13.5” x 9.25” x 13.5”
- Powder-coated aluminum case with integrated cable storage
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 13.5″ x 9.25″ x 13.5″ |
| Weight | 25 lbs |
| Voltages | 120, 240, 277, 480 (Custom voltages available) |
| Full Load | 5, 10, 15, 30, 50 |
| Light Load | 0.5, 1, 1.5, 3, 5 |
| Standard | Radian |
