Man-in-the-Middle (MitM) Cables

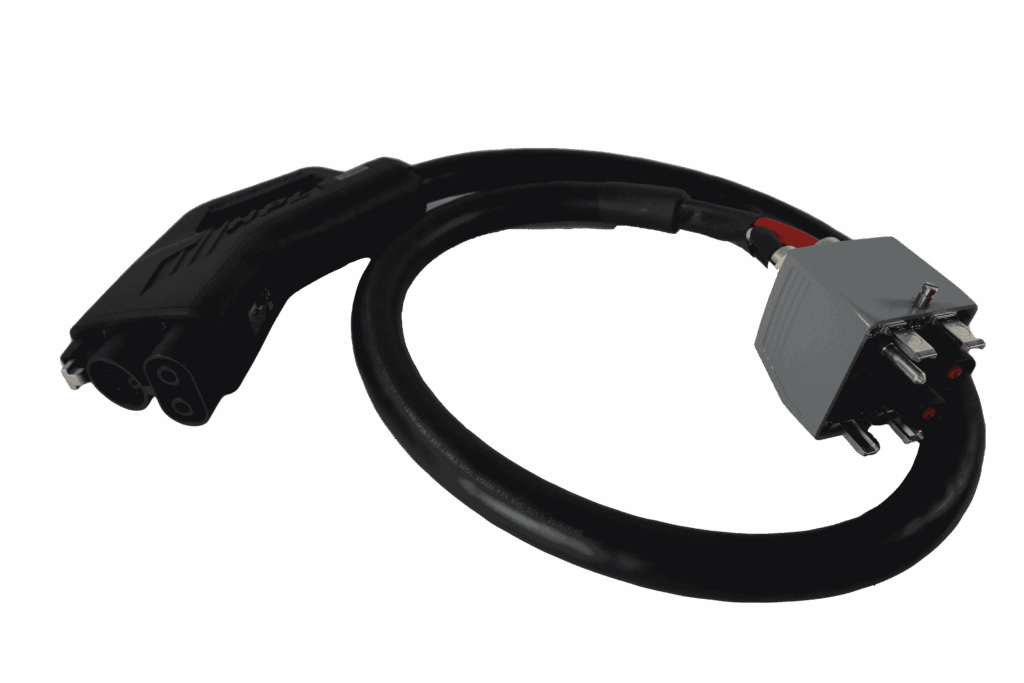

The TESCO MiTM Cable is a specialized EVSE testing cable that bridges between a Staubli interface and an EVSE charging interface (CCS1 or NACS).
Available Configurations:
DC Cables:
- MM-CCS1-DC-350: DC 350A Cable, CCS1 Adapter
- MM-NACS-DC-350: DC 350A Cable, NACS Adapter
AC Cable:
- MM-CCS1-AC-80: AC 80A Cable, CCS1 Adapter
Description
The TESCO MiTM Cable is a specialized EVSE testing cable that bridges between a Staubli interface and an EVSE charging interface (CCS1 or NACS). Designed for use with TESCO’s T4000 and T4350 EVSE Test Systems, the MiTM Cable enables direct man-in-the-middle (MitM) testing of both AC and DC charging systems, capturing real-time EVSE performance data under true operating conditions.
Key Features:
- Real-Time Data Monitoring: Internal MCU enables direct communication with TESCO’s T4000/T4350 Test Systems.
- Integrated Safety Sensors: Built-in thermistors continuously measure cable temperature for secure, reliable testing.
- High Power Handling: Supports up to 1000V DC, 350A sustained (650A peak), and 19.2kW AC charging.
- Durable & Field-Ready: Rugged 6.5 ft construction with Staubli protective terminal caps ensures long life and safe operation.
- Seamless Compatibility: Plug-and-play with TESCO test systems, supporting CCS1 and NACS charging standards.
Why Choose the MiTM Cable?
The TESCO Man-in-the-Middle Cable provides unmatched precision, safety, and compatibility for EVSE data capture and validation. By supporting both CCS1 and NACS standards in AC and DC configurations, it ensures test labs, manufacturers, and service providers can perform accurate real-world charger performance testing with confidence.
Contact Sales today to learn how the MiTM Cable can enhance your EVSE testing, charger validation, and real-time monitoring capabilities
Specifications
DC Cables:
| Unit | Details |
|---|---|
| MM-CCS1-DC-350 | DC 350A Cable, CCS1 Adapter |
| Interface 1 | CCS1 (DC+, DC-, GND, CP) |
| Interface 2 | TESCO Staubli interface (DC+, DC-, GND, CP, VMain, RS-485) |
| MM-NACS-DC-350 | DC 350A Cable, NACS Adapter |
| Interface 1 | NACS (DC+, DC-, GND, CP, PP) |
| Interface 2 | TESCO Staubli interface (DC+, DC-, GND, CP, VMain, RS-485) |
| Voltage | 1000V DC |
| Current | 350A sustained, 650A for <5 minutes |
| Power | 0 to 350kW sustained (650kW for <5 minutes) |
| Length | 78” (6.5 Ft) |
| Weight | 21 lbs. |
| Thermistors | To measure temperature |
| Operating Temp | -4°F to 122°F (-20°C to 50°C) |
| Storage Temp | -22°F to 140°F (-30°C to 60°C) |
AC Cable:
| Unit | Details |
|---|---|
| MM-CCS1-AC-80 | AC 80A Cable, CCS1 Adapter |
| Interface 1 | CCS1 (L1, L2, GND, CP, PP) |
| Interface 2 | TESCO Staubli interface (L1, L2, GND, CP, VMain, RS-485) |
| Voltage | 240V AC |
| Current | 80A |
| Power | 0 to 19.2kW |
| Length | 78” (6.5 Ft) |
| Weight | 6 lbs. |
| Internal MCU | Communicates with T4000 / T4350 |
