Catalog Nos. 1182 & 1183 - A-Base Test Board Adapter

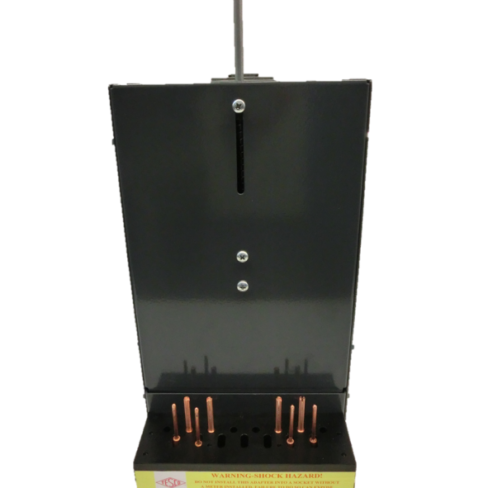

A-Base Adapter (New-Front)

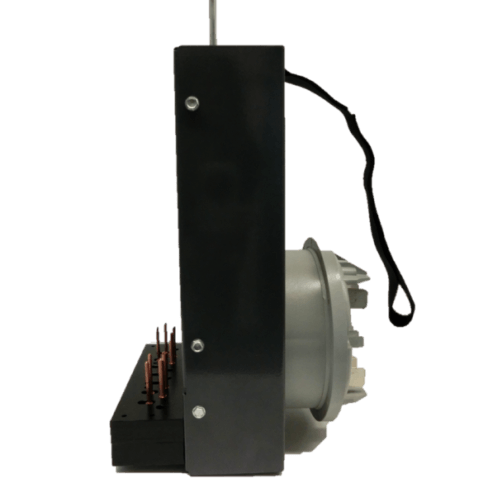

A-Base Adapter (New-Side)
From time to time, you may find yourself needing to test A-Base meters. Or perhaps you will need to test them for the first time in years as part of a removal project. Well, TESCO can help with the A-Base Test Board Adapter!
- If the quantity is small, we can test them in our shop for you.
- If the quantity is larger, we have an A-Base Test Board Adapter!
- Single Phase- Catalog No.1182
- Polyphase- Catalog No.1183
Accessories
A-Base Jumpers
Desktop Meter Test Station
Desktop Meter Station
Desktop Meter Qualification Board
Features
- Easy-to-use
- 30 amp
- Can be used on ALL TESCO Meter Test Boards, RFL 5800S, and most WECO Test Boards
Equipment Documentation
Specifications
Catalog No. 1182
Single Phase accommodates Forms 1A, 2A, 3A, and 12A
Catalog No. 1183
Polyphase accommodates Forms 4A, 5A, 6A, 8A, 9A, 10A, 11A, 13A, 14A, 15A, 16A, 17A, 18A, 29A, 35A, 36A, 45A, 46A, and 48A
Dimensions
Approximately 7" x 4.5" x 12.5"
Weight
Weighs less than 5 pounds
