IEC Meter Adapter (1186)
The TESCO IEC Meter Adapter series (Catalog No. 1186) provides a rugged, precise, and field-ready solution for testing IEC-standard electric meters on TESCO’s ANSI-standard Next Generation Meter Test Boards.
At-a-glance Summary:
- Purpose: Testing IEC meters on TESCO ANSI-based NextGen Meter Test Boards
- Supported Standards:
- IEC meters (via adapter interface)
- ANSI test boards and procedures
- Configurations Available:
- 1186-1: IEC Single Phase Meter Adapter
- 1186-48A: IEC Three Phase 48A Alclara Meter Adapter
- 1186-EDMI: IEC Three Phase EDMI Meter Adapter
- 1186-L+G: IEC Three Phase L+G Meter Adapter
- Voltage Rating: 600 V, current up to 50A
- Weight: 4.2 lbs per adapter
- Field of Use: Meter shops, test labs, utilities, manufacturers
Description
Designed for meter shops, labs, utilities, and manufacturers working across international markets, the 1186 Adapter acts as a bridge between IEC and ANSI metering standards, allowing IEC meters to be tested using existing ANSI-based infrastructure.
Whether the requirement is single-phase or three-phase: 48A, EDMI, or Landis+Gyr IEC meter testing—the 1186 delivers a secure, dependable connection that supports ANSI-compliant testing workflows and reduces the need for dedicated IEC test boards.
Key Features:
- Cross-Standard Compatibility: Enables IEC meters to be evaluated using full ANSI-compliant testing on TESCO NextGen platforms.
- Lightweight & Easy to Handle: Weighing under 5 lbs, each adapter is optimized for busy meter shops and tight testing environments.
- Multiple Configurations for Global Meters: Supports single-phase, three-phase, and IEC meter variants from leading brands like EDMI and Landis+Gyr.
- Rugged & Reliable Construction: Engineered for demanding shop conditions and repeated daily use.
- Preserves Existing Infrastructure: Allows utilities to test IEC meters on the same ANSI equipment already used for North American meter fleets.
- ANSI–IEC Interface Design: Provides a seamless mechanical and electrical interface between IEC meters and ANSI socket-based TESCO test boards.
- Universal Compatibility with NextGen Test Boards: Eliminates the need for special wiring or secondary fixtures— simply plug in and test.
- Durable, Shop-Ready Housing: Built for heavy-duty use, ensuring consistent performance and long life
- Compact Profile: Designed for meter shops and test benches where space is limited.
- Configuration Options: Available in multiple variants to support the full range of IEC single-phase and three-phase meter types.
Specifications
| Parameter | Value |
|---|---|
| Mechanical & Environmental | |
| Weight | 4.2 lbs per adapter |
| Construction | Ruggedized housing for field and shop use |
| Dimensions | Not specified in public data; see individual adapter drawings |
| Operating Environment | Shop/bench testing (no environmental ratings provided) |
| Electrical & Power | |
| Voltage Rating | 600 V |
| Current Rating | Up to 50A |
| Ampere Rating | Not specified (requires internal confirmation) |
| Safety & Compliance |
|
| Connectivity & Interface |
|
| Meter Compatibility |
|
Optional Accessories
Compatible with NextGen Test Boards, Meter Site Analyzer, and the TESCO Turbo Tester.
| Catalog No. | Description | Details / Configuration | Use Context |
|---|---|---|---|
| 1037-PM1S | 2-in-1 Pickup (ANSI + IEC) | DB9 connector, 60cm cable | NextGen test bench/board |
| 1037-PM1L | 2-in-1 Pickup (ANSI + IEC) | DB9 connector, 3m cable | Meter Site Analyzer |
| 1037-PM2S | 3-in-1 Pickup (ANSI + IEC + Rotor Disc) | DB9 connector, 60cm cable | NextGen test bench/board |
| 1037-PM2L | 3-in-1 Pickup (ANSI + IEC + Rotor Disc) | DB9 connector, 3m cable | Meter Site Analyzer |

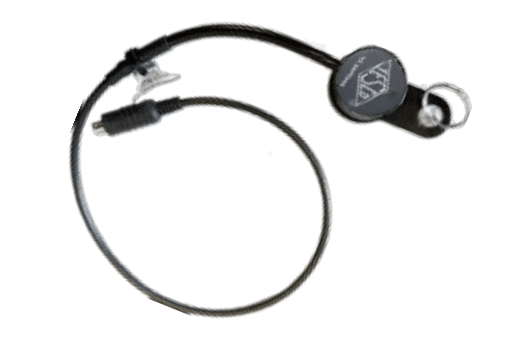

| 1037-PM1T | 2-in-1 Pickup (ANSI + IEC) | T3 connector, 60cm cable | TESCO Turbo Tester |
| 1037-PM2T | 3-in-1 Pickup (ANSI + IEC + Rotor Disc) | T3 connector, 60cm cable | TESCO Turbo Tester |
| 1037-FIXT | Versatile Fixture | Supports all pickup types | Universal mounting accessory |
| 1037-PM1S | 1037-PM2L | 1037-PM1T |
 |
 |
 |
| 1037-PM2T | 1037-FIXT |
 |
 |
