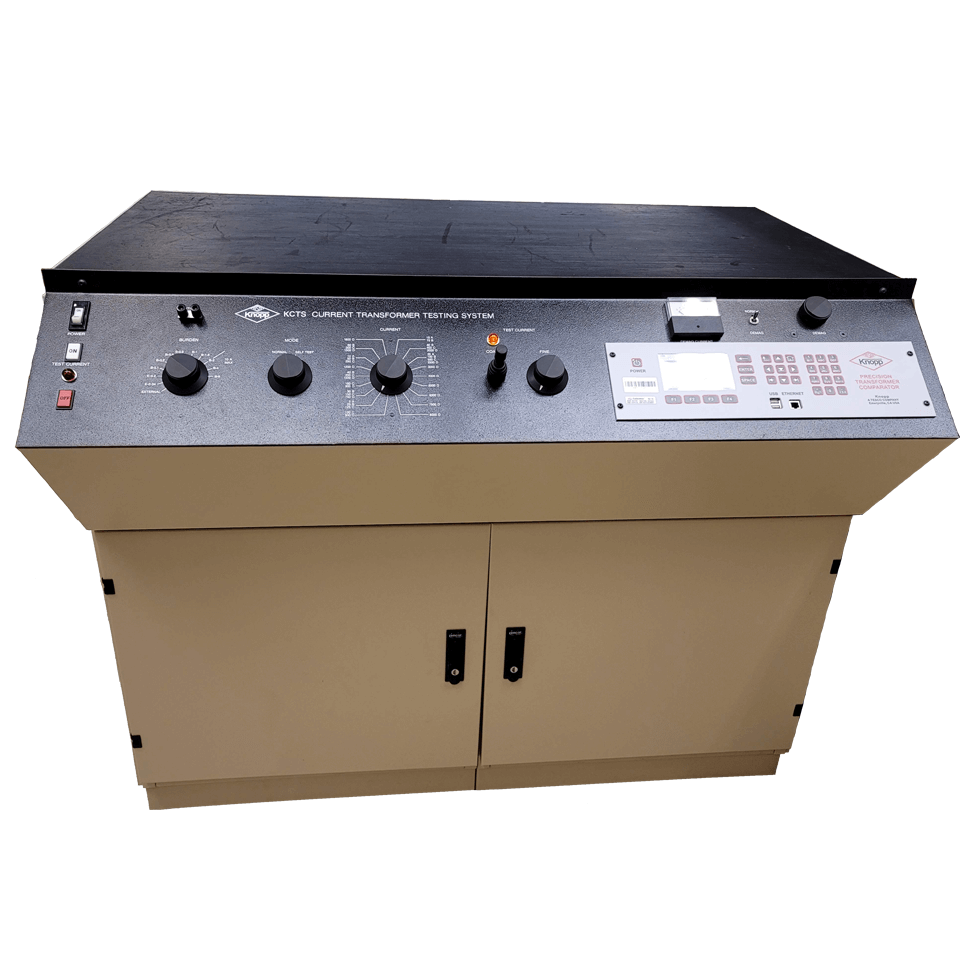

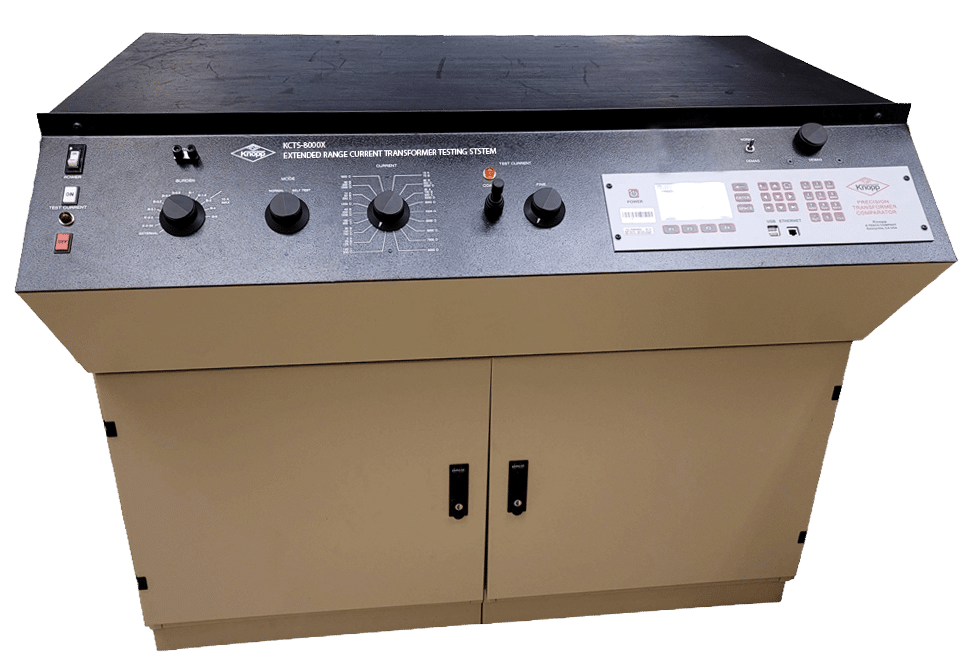

Extended Range Knopp Current Transformer Testing System (KCTS-8000X)

Traceable Accuracy down to 1% Rating Factor

The Knopp Extended Range Current Transformer Testing System (Type KCTS-8000X) is a state-of-the-art transformer testing system engineered for superior accuracy and operational  efficiency. Leveraging Knopp’s renowned precision, the KCTS-8000X expands Knopp’s present robust testing capability to allow for testing of CTs down to 1% Rating Factor. Equipped with  electronically compensated burdens, the system adjusts for active impedance and power factor to maintain accuracy even at low levels. Real-time burden measurements are displayed and  recorded for thorough test validation.

SKU: KCTS-8000X Category:
×

Description

The KCTS-8000X also features an upgraded industry-leading comparator with improved low range accuracy, protective circuitry, motorized control, an RS-232C output port, and now TESCO Device Manager integration to further enhance testing efficiency. With additional features such as transformer demagnetization and a convenient connection kit, the KCTS8000X offers an  advanced, reliable solution for precision testing in metering and billing applications.

Key Features:

  • Electronically Compensated Burdens (Active Impedance and Power Factor Compensation): Automatically adjusts for impedance and power factor to maintain accuracy even at low rating  factors, improving test reliability without manual intervention
  • Live Burden Measurement Display and Recording: Displays real-time burden measurement onscreen and records it for test validation, ensuring comprehensive and accurate test records for  future reference.
  • Upgraded Industry-leading Comparator With Extended Low Range: Offers a broader measurement range with enhanced precision, allowing for testing across a wide variety of transformer  setups, thus improving testing flexibility and efficiency.
  • Routine System Self-test: Allows for self-calibration checks, helping to extend the time between professional calibrations and ensuring long-term accuracy.
  • Protective Circuitry For Error Conditions: Prevents damage to the system by automatically shutting off power when incorrect settings, like wrong ratio or polarity, are detected, enhancing  safety.
  • Zero Start Safety Feature: Ensures that the test current starts from zero, preventing accidental damage to transformers or the testing system and increasing operator safety.
  • Motorized Control Of Test Current With Automatic Rundown: Automates test current rundown, speeding up the testing process and minimizing manual effort.
  • TDM Integration: Comparator is integrated into TESCO Device Manager for test result recording and new engineering analysis
  • Rs-232c Serial Output Port For Data Transfer: Facilitates the seamless transfer of test data to printers or data collection systems, ensuring efficient reporting and record-keeping.
  • Demagnetization Of Transformers Prior to Testing: Ability to demagnetize transformers before testing, improving test accuracy and reducing the likelihood of erroneous results.
  • Connection Kit With Cables For Easy Transformer Connection: Simplifies setup by providing the necessary cables for connecting transformers to the testing system, saving time and ensuring  compatibility
