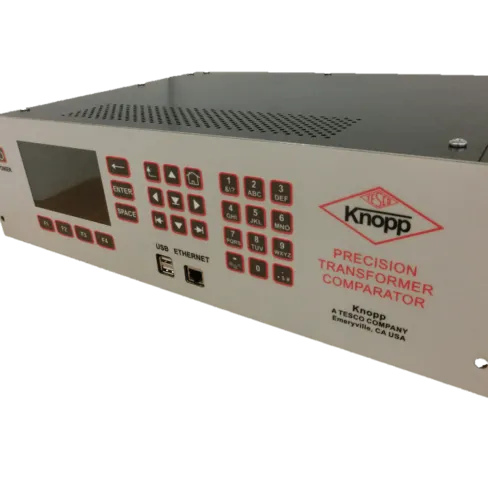

Automatic Current Transformer Comparator (KATC-C2)
Got older, slower equipment? Knopp’s Automatic Current Transformer Comparator (KATC-C2) is faster, more robust and more accurate!
Knopp’s KATC-C2 is a high accuracy current comparator that is compatible with all older generation Knopp comparators, and is designed to be a direct, plug-in replacement requiring no modification of the existing Knopp Current Transformer Test Systems. Save time and money on service by upgrading your comparator to our new next generation model!
Description
Key Features
- Easily interchangeable with other Knopp comparators; no modification needed
- Compatible with TESCO Test Manager
- Ability to test transformers with 5 ampere secondaries
- Automatic sensing of 50 or 60 Hertz current
- Calculation and display of ANSI accuracy class
- Usage and hookup error detection and alerts, resistant to excessive test current
- Fast testing time (under one minute)
- Continuous instantaneous readings
- Automatic operation (no manual “nulling” or adjustments required)
- Demag
- Auto-ranging capability
- Eliminated the possibility of burning up resistors by turning up the current too fast
- 5” Full color LCD, 800 x480
- KATC-C2-1 model allows the ability to test down to unity
