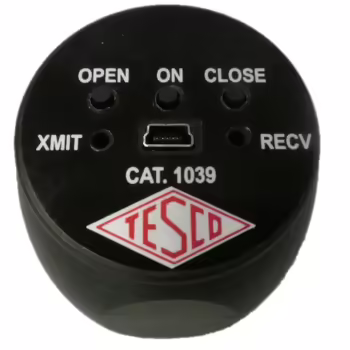

Safety Disconnect Device (1039)
$1,666.26
Field proven safety and disconnect control in the palm of your hand.
Whether you are deploying AMI meters, responding to outages, or managing load side safety during emergencies, the TESCO Safety Disconnect Device 1039 gives you control and confidence. With built in support for multiple meter types, this compact tool delivers secure remote disconnect functionality without removing the meter from the socket. Optional field configurable security can disable usage if the unit is lost or stolen.
What it does:
- Remotely open or close a meter disconnect switch while the meter remains installed
- Confirm alignment and communications with clear LED indicators
- Read serial number, meter identification, and firmware information
- Log date and time of disconnects for records and compliance
- Configure, update firmware, and load passwords with SDD Field Tool Software
Description
TESCO’s Safety Disconnect Device (Catalog No. 1039) allows you to remotely open or close a meter’s disconnect switch—without removing the meter from the socket. Designed for utility field techs and emergency personnel, this handheld device helps improve safety and save time during service disconnects.
Key Features:
- Meter Compatibility: GE/Aclara, Landis+Gyr, and Itron meters with optical ports
- Remote Disconnect Control: Open/close service with the meter installed
- Built-In Security: Password protection & optional secure keypress activation
- Automatic Meter Recognition: LED indicators confirm proper alignment and communication
- Ergonomic & Portable: Fits in the palm of your hand; lightweight enough for toolboxes
- Read serial number, meter ID, firmware
- Log date/time of disconnects
- Configure, update firmware, and load passwords using SDD Field Tool Software
- Data Output: USB connection for log retrieval and configuration
- Emergency Ready: Ideal for safe shutdowns during structure fires or other crises
- Rechargeable Battery: Lasts up to 1,000 operations per charge
Firmware and SDD Field Tool Release Notes
Version 1.48
Release Date: August 06, 2025
New Enhancements:
- One-Button Demand Reset: A streamlined process to reset the meter’s demand register—just press and go. The 1039 automatically recognizes the meter, authenticates, sends the reset command, and confirms success.
- Dual Password Capability: Supports two stored passwords per meter vendor. If the first fails, the device seamlessly tries the second—ideal for field situations with legacy or unknown credentials.
- Auto Shutoff Model: This enhanced-security version features an internal inactivity timer. After a preset idle time, the unit disables standard wake-up functionality and requires a USB connection plus physical button press to reactivate—minimizing the risk of misuse if the unit is lost or stolen.
Specifications
- Cat. 1039 compatible with GE/Aclara, Landis + Gyr, and Itron meters with a disconnect
- Open and close the remote disconnect switch on meters with an optical port
- Leave the meter in the socket during disconnect/reconnect
- Allow meter to be installed with switch open, for safety and arcing (allowing the installer to set the meter with out worry of fault on load side)
- Save time and money sending techs out in the field
- Read date and time of open/close along with meter serial number or meter ID
- Read data out via USB interface for data logs, times, voltage, etc.
- Show/Hide password on supported meters
Specifications
| Unit | Details |
|---|---|
| Model | Safety Disconnect Device 1039 |
| Meter Compatibility | GE Aclara, Landis and Gyr, and Itron meters that include a disconnect and ANSI C12.18 optical port |
| Primary Function | Open and close the remote disconnect switch with the meter left in the socket |
| Install Safety | Allows meter installation with switch open to avoid arcing and to protect the load side |
| Data Capture | Reads date and time of open and close events and records meter serial number or meter identification |
| Communications | USB interface for configuration, log retrieval, voltage data, and firmware updates |
| Status Indicators | LED indicators confirm alignment and two way communication |
| Security | Password protection with optional secure key press activation and optional auto shutoff model |
| Power | Rechargeable battery rated for up to one thousand operations per charge |
| Software | SDD Field Tool Software for configuration, password management, and firmware updates |
| Use Cases | AMI deployment, outage response, emergency disconnect, field service, and compliance logging |
