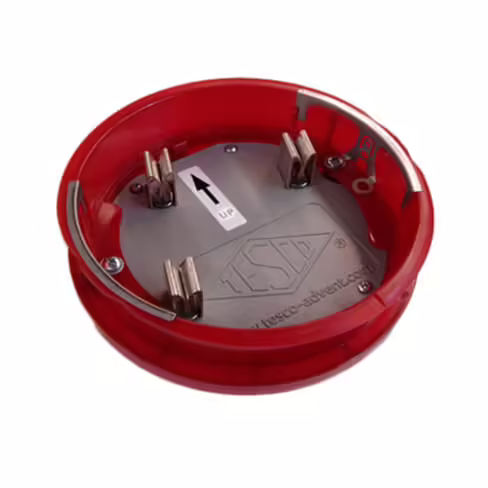

254-Meter-Service-Disconnect-Adapter

Meter Service Disconnect Adapter – Tilted at 45° (254)

Price range: $107.95 through $130.54

Disconnects customer load, while maintaining power to the meter, and tilting the meter to a 45° angle.

The TESCO Meter Service Disconnect Adapter 254 gives utilities a safe and efficient way to disconnect customer load while maintaining meter power. This adapter is specifically designed to tilt the meter at a forty five degree angle, preserving AMR and AMI communications while disabling service on the load side.

SKU: 254 Category:
×

Description

TESCO’s Meter Service Disconnect Adapter is built with UV stabilized plastic and fiberglass reinforced polycarbonate, and rated with a UL 94 5VA flame standard, the 254 provides both durability and safety for field use.

Available Variations:

  1. Catalog 251 Energized Version: Maintains power to the meter using plated copper jaw blades
  2. Catalog 252 Non Energized Version: Electrically isolates the meter with durable plastic jaw blades
  3. Catalog 254 Tilted Version: Disconnects customer load while tilting the meter at forty five degrees

Key Features:

  • Safely disconnects customer load while preserving AMI and AMR communication
  • UV stabilized plastic housing for outdoor use
  • UL 94 5VA flame rated construction for safety
  • Fiberglass reinforced polycarbonate body for added durability
  • One and a half inch stand out dimension for clear field visibility
  • Orientation indicators marked for correct installation

Specifications

Unit Details
Model Meter Service Disconnect Adapter 254 Tilted at Forty Five Degrees
Material UV stabilized plastic with fiberglass reinforced polycarbonate
Flame Rating UL 94 5VA safety standard
Design Tilts meter at forty five degrees while maintaining AMI and AMR communications
Stand Out Dimension One and a half inches for clear field visibility
Orientation Clearly marked indicators for safe installation
Available Variations
  • Catalog 251 Energized Version with plated copper jaw blades
  • Catalog 252 Non Energized Version with plastic jaw blades
  • Catalog 254 Tilted Version at forty five degrees
