Itron C1SR Itron 2S wERT

Itron C1SR Itron 2S w/ERT

$89.00

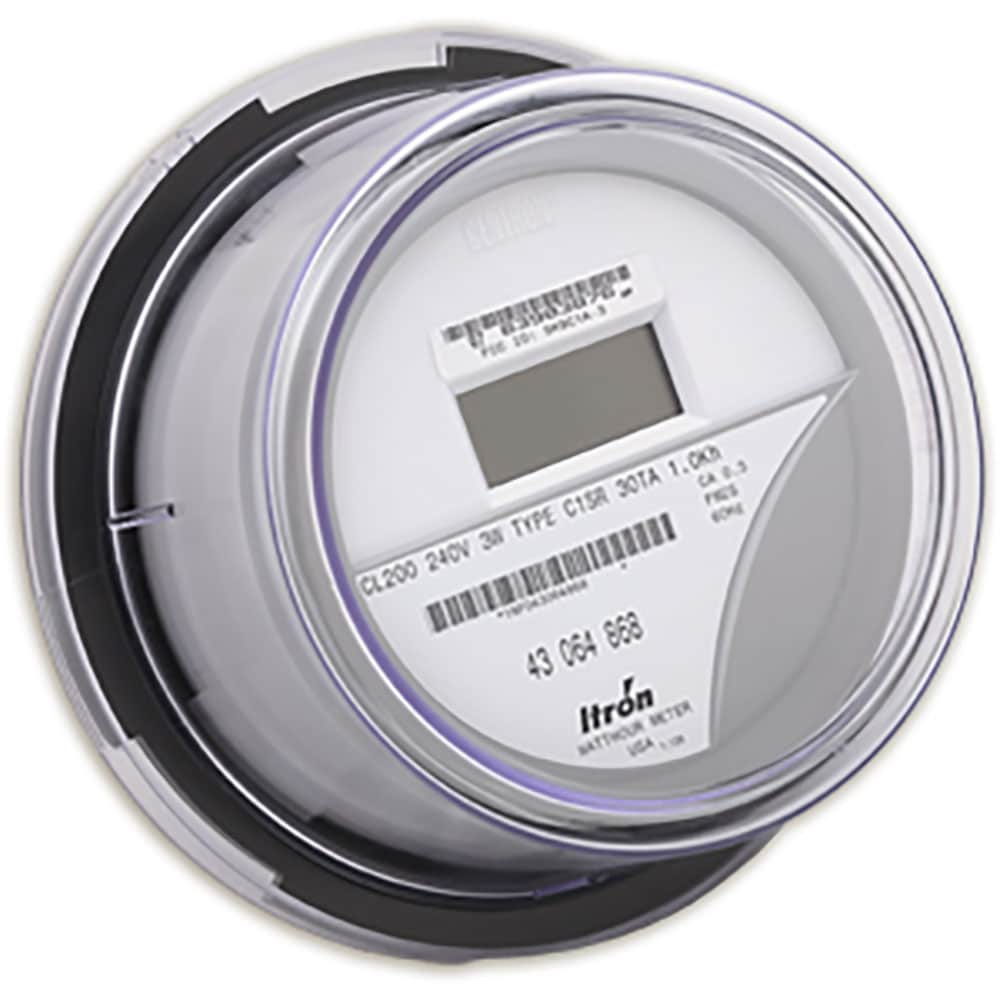

The Itron Centron C1SR (2S, 240V, CL200) is a solid-state residential electricity meter that integrates the standard C1S platform with an ERT (Encoder Receiver Transmitter) radio frequency module.

Technical Specifications:

  • Form Factor (2S): Standard single-phase 3-wire residential socket mount.
  • Voltage (240V): Designed for standard residential service with an operating range of ±20%.
  • Class (CL200): Rated for a continuous load of up to 200 Amps.
  • Accuracy: Meets ANSI C12.20 Class 0.5 standards (±0.5% accuracy).
  • Display: 5-digit or 6-digit electronic liquid crystal display (LCD).
SKU: C1SR_2S_OR Categories: , ,
Condition: (Reclaimed)
×

Description

Key Features

  • ERT Technology: Includes an R300 900 MHz radio module that transmits energy data (kWh) via RF signals. This allows for Automated Meter Reading (AMR) via “drive-by” or “walk-by” collection systems.
  • Personality Modules: Features a modular design where the register can be swapped to add advanced functions like Demand, Time-of-Use (TOU), or Load Profile without replacing the entire meter.
  • Tamper Detection: Patented technology identifies power removal, meter inversion, and reverse rotation (IDM models).
  • Solid-State Metrology: Eliminates moving parts found in older electromechanical meters, resulting in a low starting watt threshold (5 watts) and reduced “burden” (energy consumed by the meter itself).
  • Non-Volatile Memory: Stores all programming and register data in EEPROM, ensuring no data loss during power outages.

Usage and Applications

  • Residential AMR: Primarily used by utilities that still utilize mobile radio-based data collection rather than a fully two-way smart grid (AMI).
  • Solar/Net Metering: Capable of measuring bi-directional energy (delivered and received), though this often requires specific configuration of the personality module.
  • Sub-metering: Frequently used in private residential sub-metering (e.g., RV parks or rental units) due to its reliability and easy-to-read LCD.
