Desktop Meter Station (2100)
TESCO’s Desktop Meter Station (Model 2100) is engineered for flexibility and ease of use in any testing environment—from engineering labs to meter shops. Whether you’re programming a meter, checking for anomalies, or running load tests, the 2100 gives you a reliable and efficient workspace.
The redesigned station now supports optional TWACS® AMI communications, making it easy to interface with TWACS® modules through a built-in adapter and switchable communication port. All models are built with TESCO’s hallmark durability and are designed to streamline your workflow—no bulky external load box required.
Need a custom configuration or have a unique meter form?
Let us know—TESCO builds to support your testing needs.
Description
Versatile, rugged, and compact—TESCO’s Desktop Meter Station brings utility-grade testing to your workbench.
Key Features:
- Flexible Meter Testing & Programming
- Use as a meter programming station, evaluation station, or feature verification platform
- Ideal for warming meters, simulating disconnect operations, and running diagnostics
- Built-In or External Load Options
- Internal phantom load (0.5A) or external 1-phase load (optional)
- Integrated load switch with options for 0, 5, and 30 amps (custom load levels available)
- Form & Voltage Selectable
- Compatible with common meter forms: 1, 2, 3, 4, 5/45, 6/36, 8, 9, 12, 14, 15, 16
- Selectable voltages: 120V, 208V, 240V, 277V, and optional 480V
- True Zero Insertion Force (ZIF) Socket
- Designed for safe and convenient meter handling
- Compact, Desk-Friendly Design
- Available with tilt chassis for ergonomic use
- All controls mounted on the front panel for ease of operation
- High-Power Option for Disconnect Testing
- Standard models: 120VAC input, 500VA power rating
- Disconnect-enabled models: Upgraded transformer, 1000VA rating
- TWACS® AMI Meter Compatibility (Optional)
- Integrated TWACS® interface with adapter cable and panel-mounted banana jacks
- Supports communication to TWACS® modules via L-N or L-L connections
- Toggle switch to enable or disable TWACS® mode
Specifications
| Standard Specifications | |
|---|---|
| Standard Meter Forms | All standard meter forms available |
| Voltage | Voltage Selectable: 120/208/240/277 VAC; 347, 480 and 600 VAC optional Custom voltages available |
| Dimensions | 12” x 10” x 11” (W x H x D) 12” x 10” x 13” (W x H x D, Disconnect and built-in load models) |
Product Documents
Product Videos

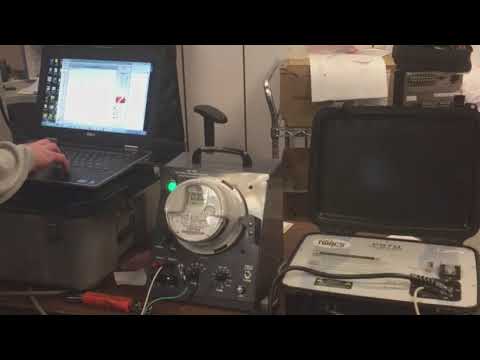

Remote Disconnect Meter Test - 2S Meter
