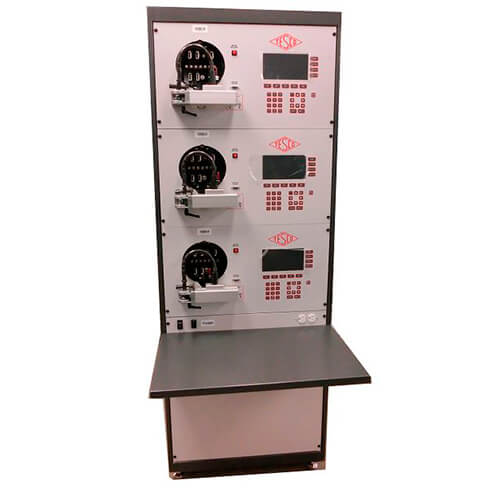

Meter Test Board (MTB1)
TESCO’s MTB1 is a full series-parallel, multi-position test board designed for advanced accuracy testing, AMI/AMR validation, and functional meter diagnostics. It provides meter shops with a complete platform for software and firmware verification, communication troubleshooting, and long-duration load simulations—including dropped cycle, phasor distortion, and harmonic waveform testing. The MTB1 supports a wide range of meter forms, and its automated features and integrated reference standard help streamline testing, improve repeatability, and reduce manual setup time.
For utilities and meter manufacturers looking to verify performance under real-world conditions, the MTB1 offers unmatched flexibility and precision.
Description
Complete accuracy testing of all meters under the widest range of conditions in a full series-parallel, multi-position configuration.
Key Features:
- Accuracy ±0.04% at unity power factor from 0.2A to 50A; ±0.02% typical
(Optional ±0.02% and ±0.01% accuracy versions available) - Single-range current drive: 0.01–50A RMS, 70A peak
(100A and 200A configurations available) - Digital waveform generator with harmonic testing and ANSI C12.20-2016 waveform support
- Automated meter socket with four-point meter detection and bypass sensing
- Meter disconnect switch testing under load with reconnect capabilities
- Power Line Communication (PLC) testing via integrated 240V autotransformer
- Automatic voltage routing for over 40 meter forms (1S through 166S)
- Integrated reference standard
- IR, radio, and PLC communication module testing
- Convenient PC software interface for test setup, data export, and system integration
