Simulate Real-World Conditions and Validate Meter Performance Before Deployment

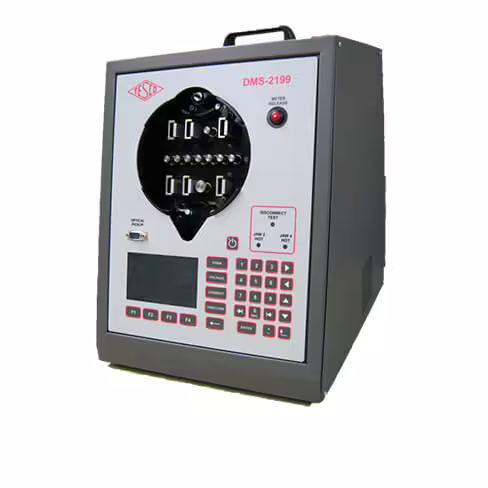

The TESCO Model 2199 Desktop Meter Qualification Board (MQB) is a fully programmable, single-position meter qualification platform designed to simulate real-world operating conditions, perform meter warm-up, and validate performance prior to deployment.

Unlike general-purpose test stations or accuracy-focused meter test systems, the 2199 is a purpose-built system for meter conditioning, communications validation, and pre-deployment qualification.

SKU: 2199 Category:
×

Description

What the 2199 Is Used For

The 2199 is used in single-position testing environments where controlled, repeatable validation of individual meters is required.

  • Meter warm-up and conditioning under load
  • Pre-deployment meter qualification and validation
  • AMI and AMR communications testing (including PLC)
  • Disconnect and reconnect testing
  • Sequence-based automated testing
  • Simulation of real-world and abnormal electrical conditions



Why Utilities Use the 2199

Utilities rely on the 2199 when repeatability, control, and accuracy are critical:

  • Simulates real-world field conditions prior to installation
  • Executes automated test sequences and extended protocols
  • Validates communications without external equipment
  • Reduces field failures, truck rolls, and commissioning issues
  • Standardizes meter qualification workflows across teams



Where the 2199 Fits

The Model 2199 is part of TESCO’s single-position meter qualification system, designed for meter warm-up, validation, and communications testing prior to deployment.

It differs from other equipment categories:

  • Meter Qualification Board (2199): Warm-up, validation, and functional testing
  • Meter Test Systems (DTS-2990, MTS-3050, MTS-3200): Accuracy testing and calibration
  • Flexible Test Platforms (2100): General-purpose testing and troubleshooting



Key Capabilities

Designed for single-position, high-control testing environments, the 2199 provides advanced capabilities for meter qualification and validation.

Fully Programmable Voltage and Load

  • Voltage: 30–480V RMS (up to 600V derived configurations)
  • Current: 0.01A to 50A RMS

Advanced Waveform Simulation

  • Non-sinusoidal and harmonically defined waveforms
  • Automatic generation of ANSI C12.20-defined waveforms
  • Adjustable phase and power factor

Automated Test Sequences

  • Predefined and custom test scripts
  • Configurable warm-up periods prior to testing
  • Repeatable and standardized validation processes

Integrated Communications and Functional Testing

  • PLC (Power Line Carrier) testing built-in
  • Disconnect and reconnect testing standard
  • No external equipment required for PLC communications testing

Zero Insertion Force Socket

  • Electrically operated socket for safe meter handling
  • Supports a wide range of meter forms

Software Integration and Connectivity

  • Ethernet connectivity for remote operation
  • Test Manager Application (TMA) integration for:
    • Test control
    • Data storage
    • Sequence configuration



Designed for Meter Qualification Workflows

The 2199 is engineered for:

  • Meter shops performing structured validation
  • Engineering teams conducting advanced testing
  • Utilities deploying AMI systems at scale

As a single-position system, it is ideal for controlled testing, engineering validation, and structured meter qualification workflows.

Specifications

Electrical Specifications
Voltage Drive 30–350V RMS, 680V PK
Current Drive 0.01A to 50A RMS, 75A PK
Voltage Accuracy ±0.5% above 60V
Current Accuracy ±0.5% above 0.1A
Voltage and Current Stability ±0.1% (15⁰C to 30⁰C)
Fundamental Frequency 45–65Hz
Meter Forms 1S–6S, 8S–17S, 25S, 26S, 29S, 32S, 35S, 36S, 45S, 46S, 56S, 66S, 76S, 103S, 106S, 109S, 112S, 116S, 125S, 135S, 136S, 145S, 166S
Display 800×480 Color LCD
Power Requirements 120 VAC, 1PH, 10A (Power cord included)
Size (approx.) 13.13” x 15.50” x 18.19”
Weight (approx.) 41 pounds

FAQs

A meter qualification board is used to validate the functional performance of electric meters, including communications, firmware, and operational behavior. Systems like the TESCO 2199 are often used to energize meters under load and verify performance under controlled and repeatable conditions.

Meter testing systems can be either single-position or multi-position depending on the application. The TESCO 2199 is a single-position system designed to test one meter at a time, while multi-position systems such as MQB platforms are used for higher-throughput workflows.

Yes, meter testing systems can generate a wide range of voltage, load, and waveform conditions. Solutions like the TESCO 2199 support harmonic and non-sinusoidal waveforms, allowing utilities to replicate real-world and abnormal operating scenarios prior to deployment.

Yes, many meter testing systems support automated test sequences and programmable scripts. Systems such as the TESCO 2199 enable consistent, repeatable testing processes that reduce manual variability and improve efficiency.

Yes, meter testing systems are designed to validate both communications and functional performance. The TESCO 2199, for example, supports Power Line Carrier (PLC) communications testing as well as disconnect and reconnect testing, allowing utilities to verify full meter operation without additional equipment.
