Optical Pickup for Itron Gen™5 Riva™ Meter (1037-RIV)

$970.00

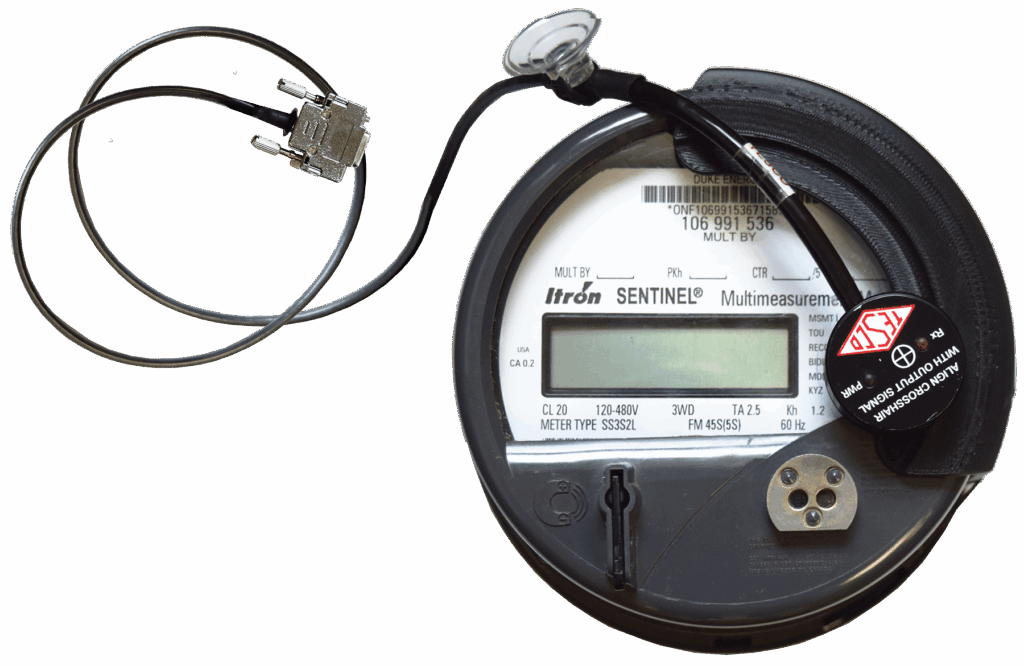

TESCO’s 1037-RIV Optical Pickup is specifically designed for Itron Gen™ 5 Riva™ meters, solving the challenge of accurately holding a pickup sensor over the new optical pulse output location. With a shape that conforms perfectly to the meter face, the RIV1 and RIV3 provide hands-free operation and optimal pickup alignment—maximizing signal accuracy without manual adjustment.

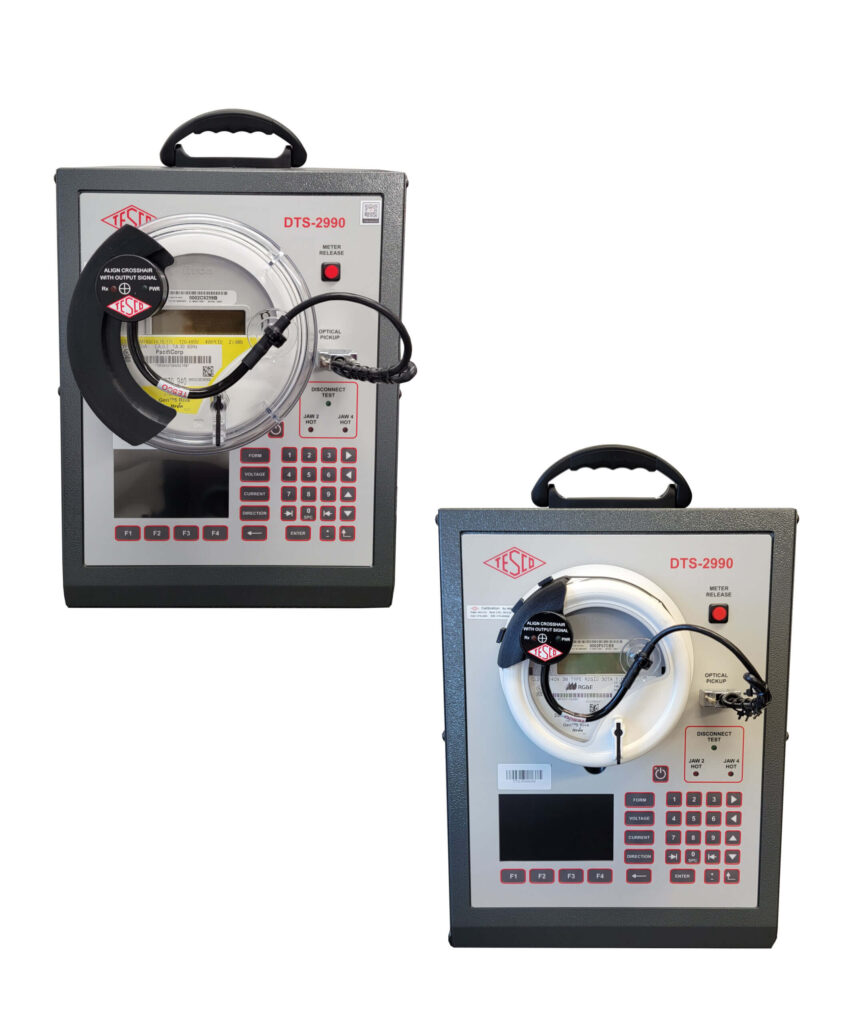

This rugged, RF-resistant sensor works seamlessly with both the TESCO 2990 Desktop Meter Test Station and the 6330 Meter Site Analyzer, delivering reliable, field-proven performance for modern AMI test environments.

SKU: 1037-RIV Category:
×

Description


Engineered for hands-free, accurate pulse pickup on the latest Itron meter designs.



Key Features

  • Automatically aligns with the meter’s optical port—no manual adjustment needed
  • Provides consistent, reliable pulse detection
  • Blocks ambient light for improved signal clarity
  • Resistant to RF noise from AMI and emerging technologies
  • Sturdy elastic band ensures secure fit on meter
  • Made from ultra-durable plastic; conforms to ANSI Standards
  • Available for both single-phase (RIV1) and polyphase (RIV3) meters
  • Senses infrared pulses from ANSI-compliant meters



Available Configurations

  • 1037-RIV-DB: 2 ft. cable with DB-9 connector – for any TESCO Test Board
  • 1037-RIV-SA:  9.84 ft. cable with DB-9 connector – for the 6330 Meter Site Analyzer
  • 1037-RIV-STND: 6 ft. cable with LEMO connector – for any TESCO Test Board
  • 1037-RIV-CL: Custom cable lengths available upon request



Accessories

Replacement elastic bands available (5-pack)

Adapters available for use with non-TESCO test equipment
