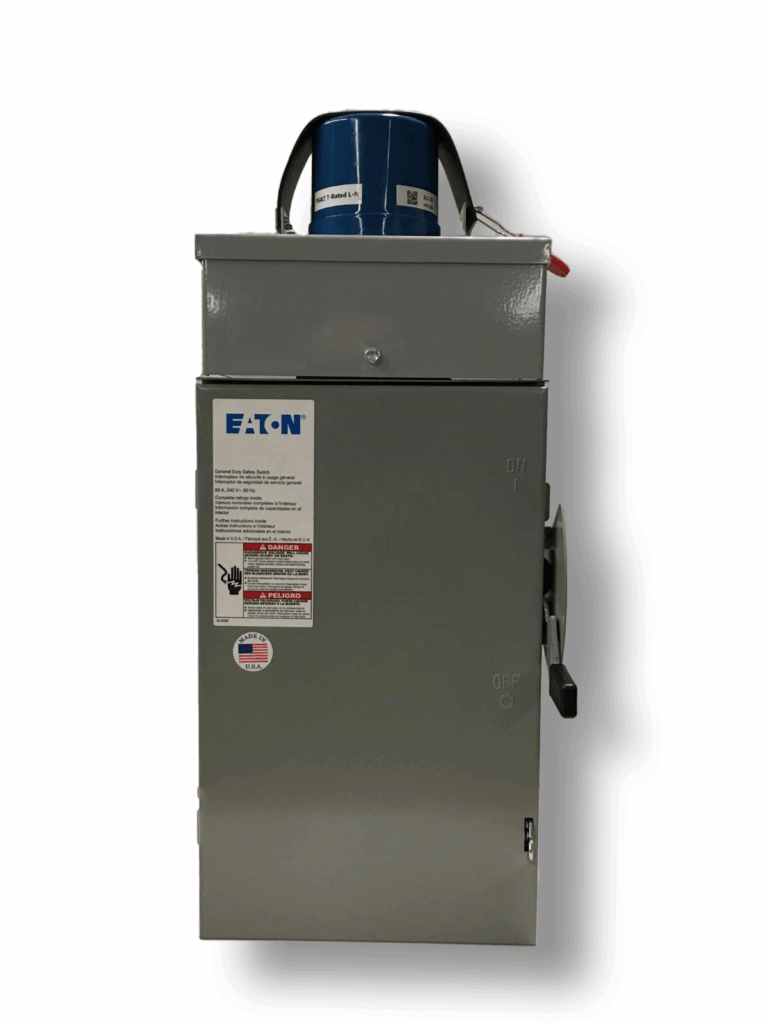

Transformer-Rated Smart Pole Meter Disconnect Box (703)
As 5G and telecommunications deployments demand more pole-mounted services, utilities need safe, reliable metering solutions. TESCO’s 703 Transformer-Rated SmartPole Meter Disconnect Box delivers exactly that; providing a secure and rugged infrastructure for mounting smart meters on utility poles.
Description
This transformer-rated metering assembly comes pre-installed with a 100:5 CT and is ideal for 2-wire single phase applications up to 60 amps. It’s housed in a corrosion-resistant, powder-coated NEMA 3R enclosure designed for outdoor durability. The included marine-grade HDPE strap ensures a firm fit on both wood and metal poles.
Built to simplify installation and service, this meter disconnect box includes tamper-resistant features, voltage options, and standard test receptacles, all while meeting ANSI C136.41 standards for pole-mounted meters. For installations requiring mounting support, pair it with the TESCO 703-PB Pole Mounting Bracket for a complete solution.
Key Features
- Designed for 5G and telecommunications metering on utility poles
- Compatible with smart meters rated up to 5A (meter not included)
- Built-in 100:5 current transformer (CT)
- Supports up to 60A (fuses supplied by customer)
- Available configurations:
- 703-120: 120V 2-Wire Single Phase
- 703-240: 240V 2-Wire Single Phase
- NEMA 3R outdoor enclosure
- Powder-coated G-90 galvanized steel construction
- Marine-grade HDPE hold down strap for secure pole mounting
- Includes 4-pin receptacle, tamper-resistant 1/4” seal, and ground/bonding lug
- Mounts to wood or metal poles
- Compatible with TESCO 703-PB Pole Mounting Bracket for easy installation
