Field Meter Test Station (FTS-2990)
Elevating Meter Accuracy Testing with a Field-Optimized Design.
The FTS-2990 is a fully ANSI-compliant test board, providing comprehensive testing for meters across a wide range of conditions. Its new waveform generator aligns with ANSI C12.20-2015 (pub 4/2017) standards, incorporating all specified waveforms. This system accommodates testing for solid-state meters with a capacity extending up to 50 amps. Utilizing a single voltage and three isolated current sources, the FTS-2990 ensures thorough and precise testing for an array of meters.
Description

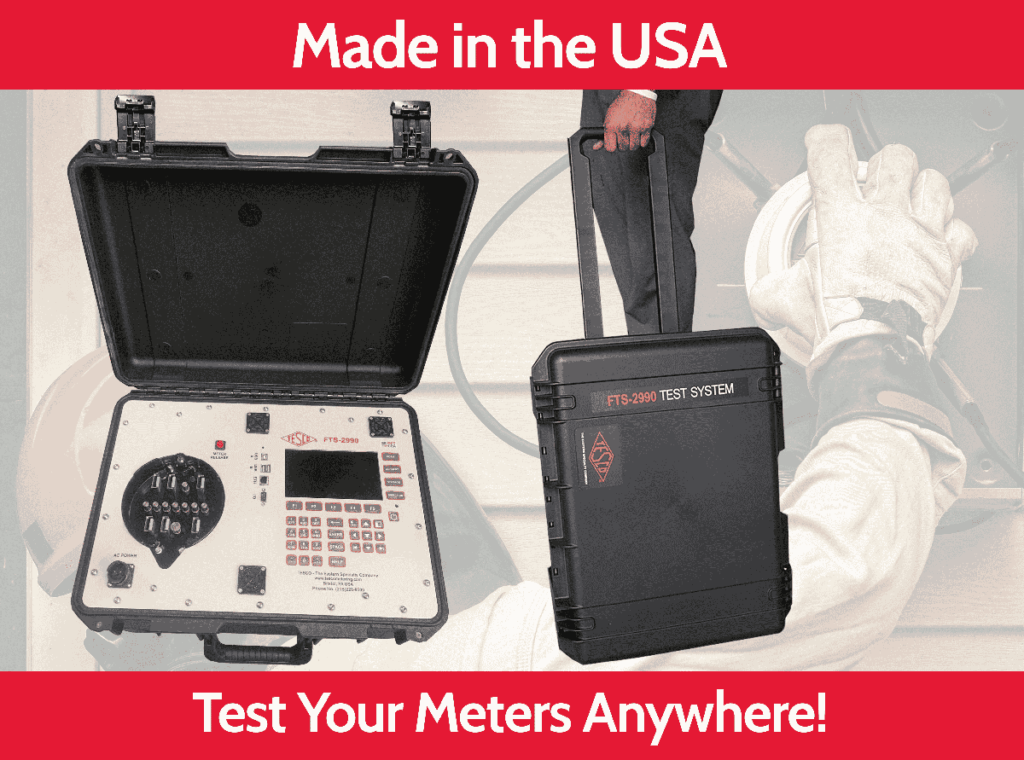

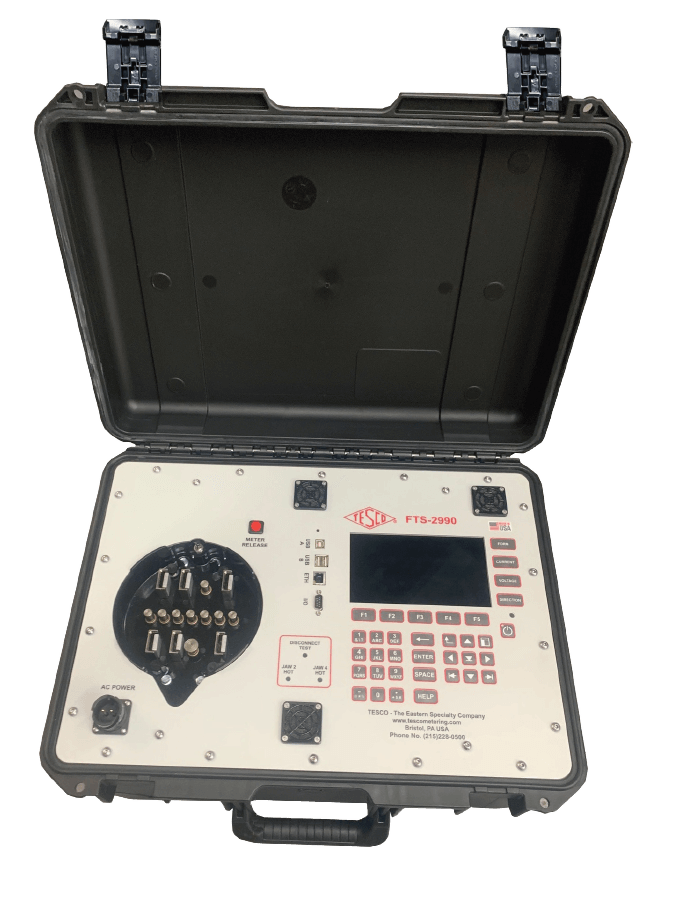

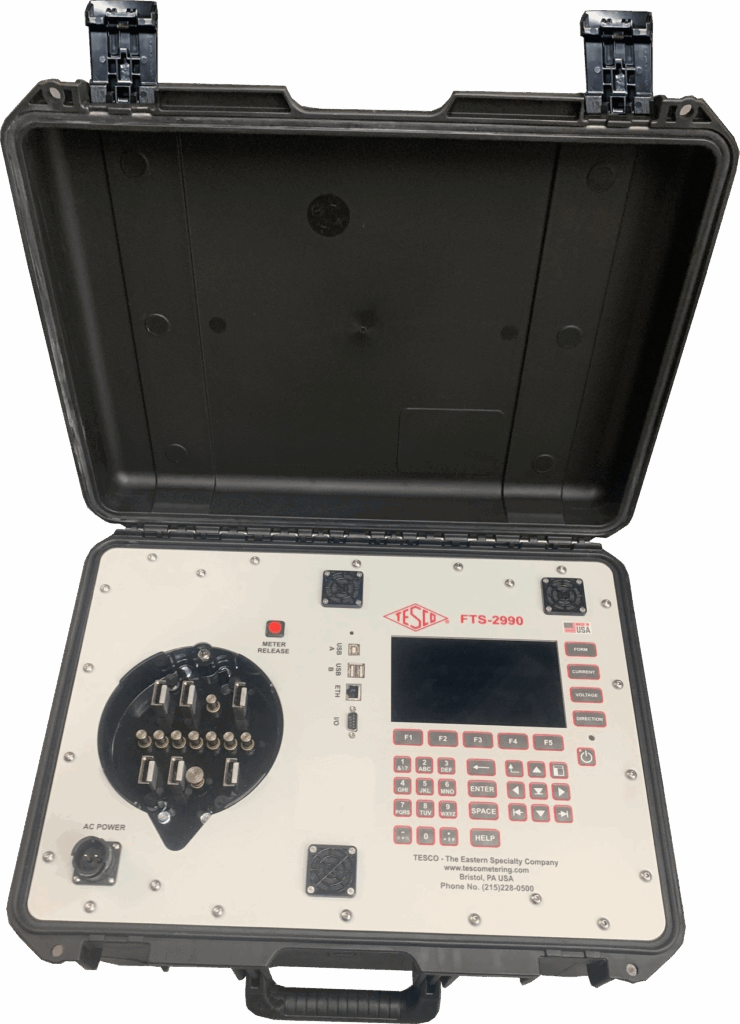

As the industry standard in meter accuracy and functional testing in a small, convenient package, the TESCO DTS-2990 is now available in a portable configuration to help solve the challenges of testing meters at the meter site. The new FTS-2990 maintains the same proven reliability and accuracy for testing both self-contained and transformerrated meters as the standard DTS-2990, but is now available with a rugged case, making it ideal for meter testing in any location.
Key Features:
- Digital Waveform Generator with arbitrary harmonically defined waveforms
- Automatic generation of all ANSI C12.20-2015 waveforms
- True zero insertion force socket with automatic closure on meter insertion
- Powerful multi-core, 32-bit processors
- 7” high-resolution screen
- Direct sunlight readable
- Protected display surface
- Integrated control keypad
- Ethernet connectivity
- USB-A & USB-B ports
- DB9 port for optic interface
- Simultaneous time and frequency domain measurements
- Built-in reference standard (one voltage, three current sources) traceable back to NIST
- Demand and time-run test capability
- Dropped cycle testing available on request
- 1037-DTS Optical Pickup included
- Computer control software package for full control and test data storage via external PC
Specifications
| Parameter | Details |
|---|---|
| Voltage Drive | 30–350 V RMS, 490 V Peak (line to neutral) |
| Current Drive | 0.01–50 A RMS, 75 A Peak |
| Phase Adjustment | Fully adjustable as phase or power factor |
| Voltage Setting Accuracy | ±1.0% |
| Current Setting Accuracy | ±1.0% |
| Fundamental Frequency | 45–65 Hz |
| Measurement Accuracy |
|
| Supported Meter Forms | 1S–6S, 8S–17S, 25S, 26S, 29S, 32S, 35S, 36S, 45S, 46S, 56S, 66S, 76S, 103S, 106S, 109S, 112S, 116S, 125S, 135S, 136S, 145S, 166S |
| Dimensions | 21.2” × 16.0” × 10.6” |
| Weight | Approximately 55 lbs |
| Power Requirements | 120–480 V AC, 1 Phase, 2 A to ½ A |
