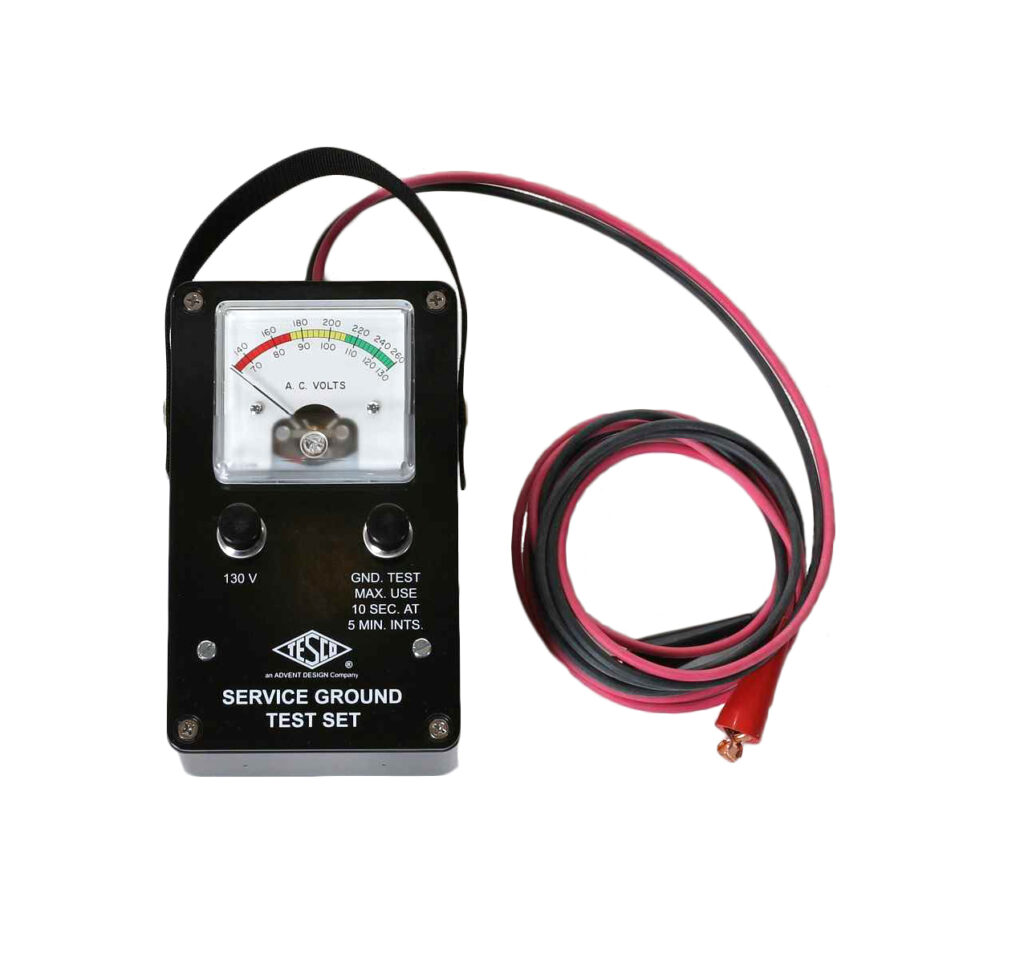

Service Ground Test Set (900)
TESCO’s Service Ground Test Set (Catalog No. 900) is engineered to confirm the condition of a service ground connection with clarity and precision. Designed around a suppressed-zero voltmeter and internal shunt, this compact instrument identifies resistance in the ground path by displaying any resulting voltage drop. It also doubles as a diagnostic tool for potential transformers, placing a measurable burden on the secondary to detect performance issues. Whether verifying a meter installation or investigating transformer functionality, the 900 offers dependable accuracy in the field.
Description
Features
- Verifies Ground Integrity: Quickly identifies resistance in secondary service ground connections.
- Suppressed Zero Voltmeter: Dual-range scale (65-130V and 130-260V) magnifies voltage drop effects for easy detection.
- Color-Coded Readings: Red, Yellow, and Green sectors help technicians visually assess ground quality at a glance:
- Red: 65-86V (≥24 ohms resistance)
- Yellow: 86-106V (~8–24 ohms resistance)
- Green: 106-130V (≤8 ohms resistance)
- Multi-Use Functionality: Also checks potential transformers in transformer-rated metering installations.
- Compact & Lightweight: Measures just 6.5″ x 4.125″ x 2.625″ and weighs only 1.375 lbs.
- Built-In 60 Ohm Shunt: Delivers 2A load when testing ground resistance.
