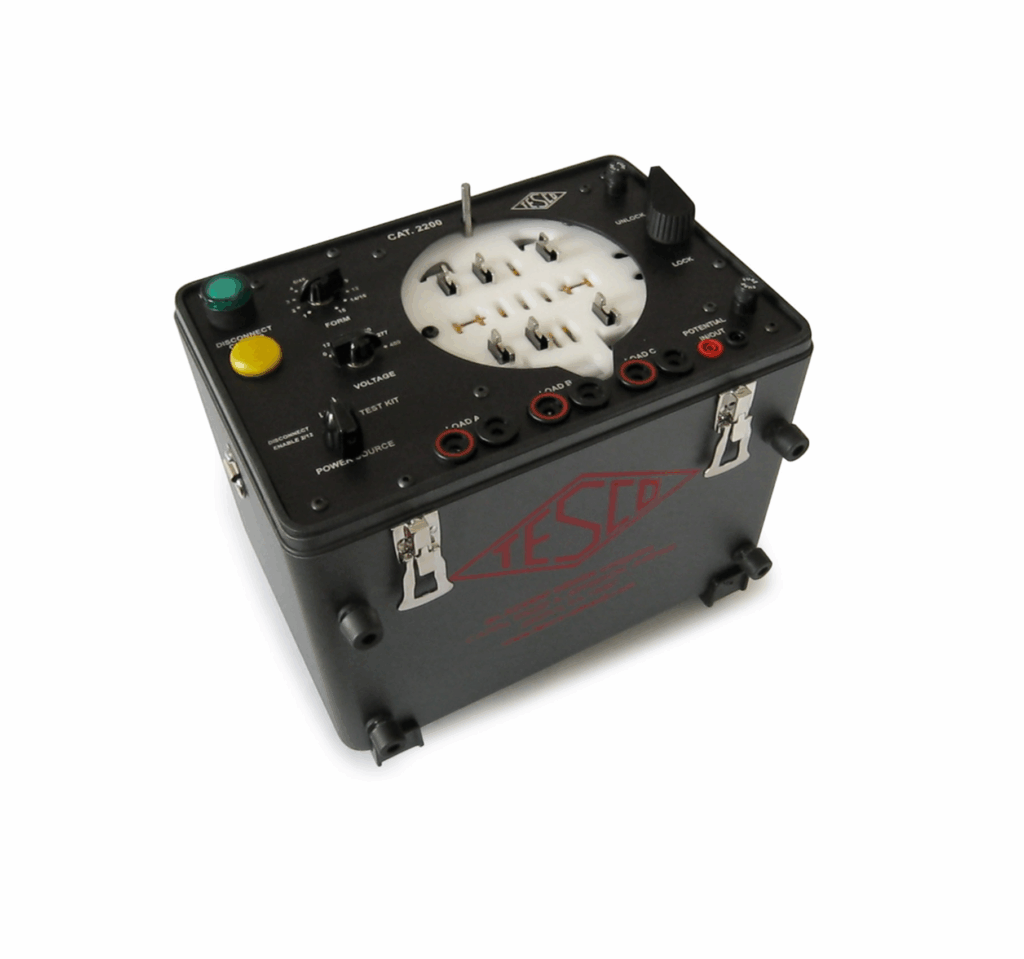

Field Test Interface Kit (2200)

The TESCO Field Test Interface Kit (Catalog No. 2200) delivers unmatched flexibility to meter professionals by transforming any compatible TESCO Field Test Kit into a fully integrated, stand-alone meter testing system. Whether powered by vehicle inverter or customer potential, the 2200 makes field testing socket meters seamless, offering full functionality comparable to TESCO’s Desktop Meter Stations.

SKU: 2200 Category:
×

Description

Designed for rugged field use, the 2200 supports a wide range of socket meter forms and voltage levels. Its built-in meter socket eliminates the need for cumbersome adapters while supporting transformer-rated and self-contained applications. The optional disconnect functionality enhances field safety by allowing each phase to be controlled independently during energized testing.

Key Features

  • Converts TESCO Field Test Kits into stand-alone meter test stations
  • Compatible with Catalog Nos. 621, 630, and GA Series Field Test Kits
  • Zero Insertion Force (ZIF) meter socket
  • Supports both mechanical and solid-state socket-based meters
  • Powers test kits via 120 VAC inverter (e.g., service trucks)
  • Customer potential through Field Test Kit (inverter not required)
  • 50 Amp maximum current input
  • Optional disconnect operation for enhanced safety
  • Meter form selection support: 1, 2, 3, 4, 5/45, 6/36, 8, 9, 12, 14, 15, 16
  • Can be used as a programming station, evaluation station, or test bed
  • Eliminates need for transformer-rated/self-contained adapters

Specifications

Parameter Value
Power Source 120 VAC w/ detachable 10′ cord or TESCO Field Test Kit
Internal Power Supply Standard: 250VA transformer; Disconnect: 500VA transformer (up to 480 VAC)
Meter Test Current 50 Amps max
Meter Socket Rating 600 Volts
Voltages 0V, 120V, 208V, 240V, 277V, 480V (Custom available)
Connections Two 5A sheathed banana jacks; Six 50A multi-contact current jacks
Dimensions 13.3″ W x 14.9″ H 9.8″ D
Weight Standard: 26.5 lbs; Disconnect: 32 lbs
