150kW Programmable Load Box (PL4150)

The PL4150 is a load box that can test many different types of EV chargers up to 150kW.

Features:

  • Auto-Interface
  • Auto Cool-off
  • Temperature, Humidity and Fan Speed Sensors
  • Safety Sensors
  • NEMA 3R Waterproof Rating
SKU: PL4150 Category:
×

Description

The unit is used with a T4000 or T4350. Specs are reduced when used with a T4000. The load box is charger-agnostic. It will work with any charger that the T4000 / T4350 can operate with (CCS1, CCS2, NACS, CHAdeMO, GBT, etc.). The PL4150 is a load bank that will require a forklift or crane to lift and place in the back of a pickup truck. The unit is heavy, large and contains moving parts like a lid and fans. The PL4150 has forklift channels on the bottom and eyebolts at the top corners for lifting. The PL4150 also has some parts that protrude out such as a rain hood, mounting bracket, and waterproof lid for breakers.

Specifications

Unit Details
Single Phase AC Charger
  • Voltage: 120V, 208V, 240V
  • Current: 0A – 80A
3-Phase AC Chargers
  • Voltage: 400V line to line
  • Current: 0A – 32A per phase
DC Chargers for 400V Battery Technology
  • Voltage: 350V – 420V. 360V nominal
  • Current: 20A – 350A. Up to 375A for a short time
DC Chargers for 800V Battery Technology
  • Voltage: 700V – 800V. 720V nominal
  • Current: 10A – 175A
Size 28”L x 43.2”W x 40.5”H
Weight ~350 lbs.
Cabling
  • Conduit with Staubli termination (7ft) to be used with a T4000 or T4350
    1. DC +, DC-, L1, L2, L3, L4, and PE
    2. Batt, digital GND, and Comms
  • E-Stop with M12 header (16ft) to in case of emergencies
LEDs
  • Green LED to indicate power
  • Yellow / Amber LED to indicate Comms with T4000 / T4350
  • Red LED to indicate unit is running and dissipating power
Breakers 2 Breaks for AC lines
Waterproof Lid Waterproof lid with sensor. Closed when not in use

Product Documents

Product Videos

EVSE Test Equipment - T4350 & PL4150

EVSE Test Equipment - T4350 & PL4150

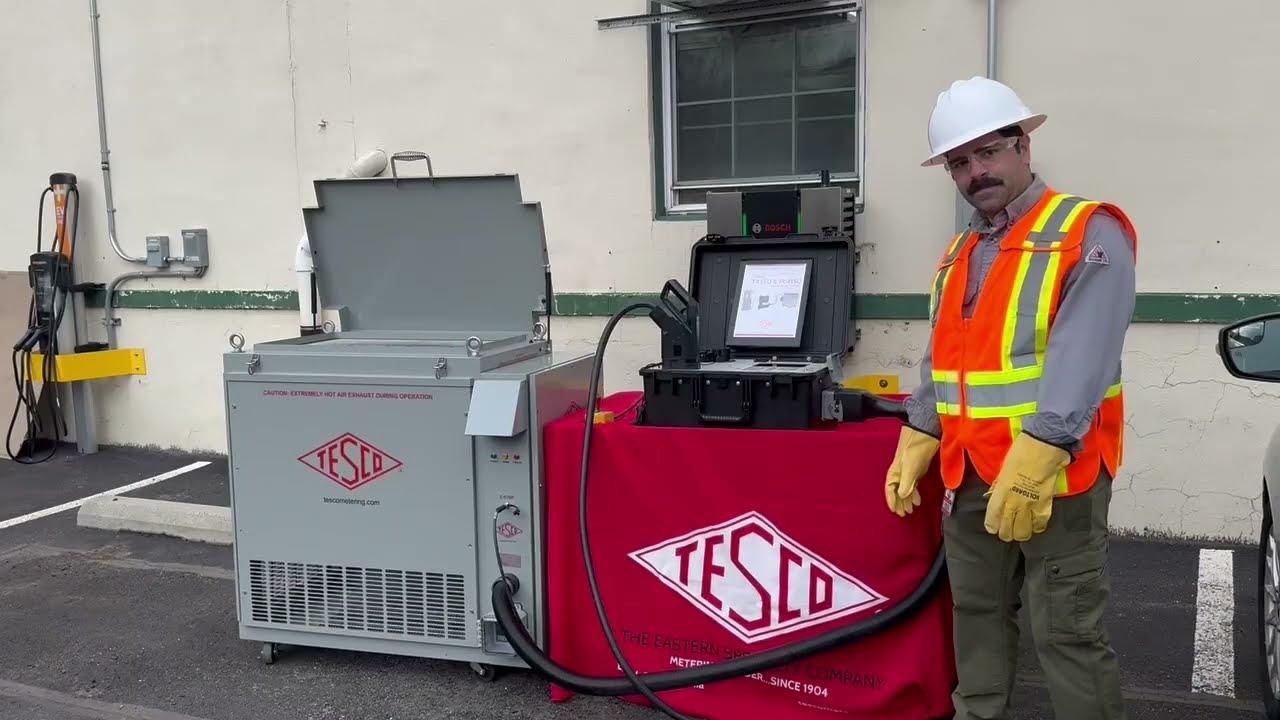

T4350 and PL4150 Manual Testing Demonstration
