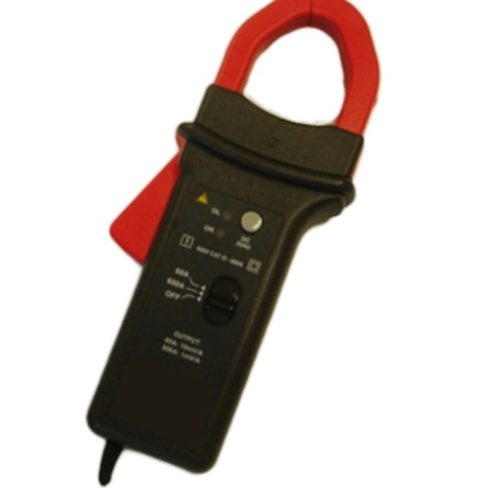

Catalog No. 411 - AC Current Probe


The TESCO AC Current Probe (Catalog No. 411) is designed to extend current measuring capabilities of the CT Ratio/Burden Tester (Catalog No. 1047). Cat. 411 is built to the latest safety and performance standards, including the CE Mark. Two different hook-shaped jaws are offered, both permitting the user to “pry” or “hook” onto cables (will accept 2 x 500MCM) or even onto small bus bars.
The AC Current Probe uses hall effect technology to measure AC current. The electronics and batteries are self-contained in the handles. The output of the AC Probe is 1mV/A and 10mV/A. The Current Probe measures to 400A AC.
TESCO’s Cat. 411 can be sold as is, or as a calibrated item by our ISO 17025 Testing and Calibration Laboratory.
Features
- Measurement range of 400A AC
- Distinct jaw shapes to be used for hooking or prying around the conductor
- Auto-zero push button
- Auto off after 10 minutes
- Conforms to EN 61010, 600V, CAT III safety standard
- Low phase shift for power measurements
- mV output signals
- Double insulation
- CE Mark
Equipment Documentation
Specifications
Nominal Range
400A AC
Measurement Range
0.2 to 600A
Output Signal: 60A
10mV/A; 600A: 1mV/A
Accuracy (60A Range)
0.5 to 40A: 1.5% of Reading +/-0.5A
Phase Shift (60A Range)
10 to 20A: 45 to 65Hz: ≤3.5°
20 to 40A: ≤3°
20 to 40A: ≤3°
