DirectConnect

TESCO DirectConnect™ is the utility industry’s answer to outdated AMI communication methods. Built for modern networks, DirectConnect™ delivers high-speed LTE Cat-1 performance in a compact, under-glass form factor. It supports Class 20 and Class 320 Aclara kV2c meters across a variety of meter forms—including 1s, 2s, 3s, 4s, 6s, 9s, 12s, 16s, 25s, 36s, and 45s.

Designed with simplicity and security in mind, DirectConnect™ enables utilities to modernize their grid one meter at a time—without costly infrastructure investments. With real-time outage/restoration alerts, secure two-way communication, and full software compatibility, DirectConnect™ helps you improve efficiency, reduce costs, and boost customer satisfaction—all while protecting your data.

×

Description


As utilities retire aging 2G/3G modems and hard-wired POTS lines, many face growing AMI coverage gaps and rising operational costs. TESCO DirectConnect™ offers a simple, cost-effective way to bridge those gaps—without overhauling your entire AMI system.

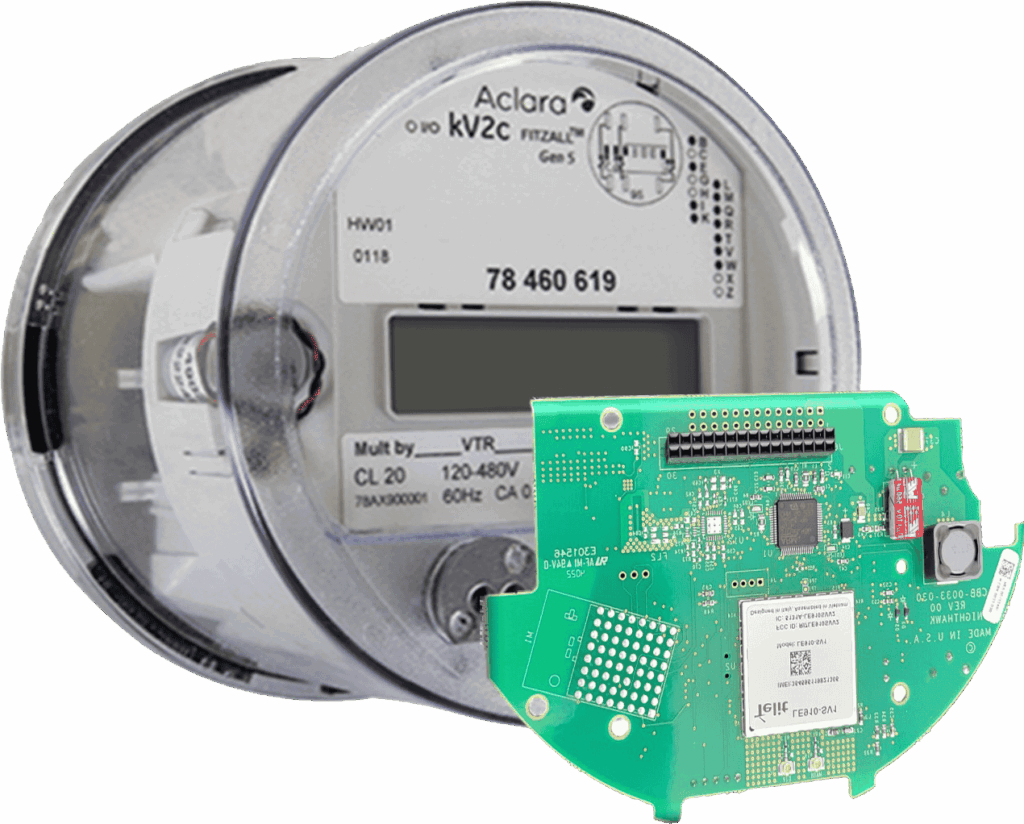

DirectConnect™ is a true plug-and-play, under-glass cellular modem designed specifically for Gen 5 Aclara kV2c meters. It delivers always-on LTE connectivity, 24/7 access to meter data, and seamless integration with your existing AMI or billing systems. The result: more accurate data, fewer site visits, and a future-ready metering infrastructure.



Key Features

  • Plug-and-Play Deployment: Under-glass cellular modem installs easily into Aclara kV2c meters—no additional infrastructure required.
  • Always-On Connectivity: Real-time communication over LTE networks with IP passthrough technology ensures reliable, 24/7 access to meter data.
  • Bridges AMI Voids: Replaces outdated 2G/3G modems and analog lines to maintain continuous data flow without costly system upgrades.
  • Flexible Integration: Compatible with MV-90™, Aclara MeterMate, Trilliant UnitySuite, and Trilliant PrimeRead for seamless utility operations.
  • Secure Data Transmission: 128-bit AES/EAX encryption (ANSI C12.22) safeguards data across bidirectional LTE connections.
  • Over-the-Air Upgrades: Supports remote firmware updates for easy deployment of new features and patches.
  • Utility-Grade Compliance: Meets ANSI standards (C12.1, C12.18, C12.19, C12.20, C12.21), FCC and IC emissions requirements, and operates across Verizon and AT&T networks.
  • Optional Features: Available with KYZ output board or Viking connector for enhanced flexibility.

Made in the USA and engineered for the evolving needs of electric utilities, TESCO DirectConnect™ delivers maximum ROI with minimal cost.

Specifications

Radio Performance
Protocols TCP/IP
Modulation OFDM (Orthogonal Frequency Division Multiplex)
Data Rate LTE Cat-1 (5 Mbps ↑, 10 Mbps ↓)
Frequency Band LTE Bands 2, 4, and 12 or 13
Transmit EIRP +20 dBm (including antenna gain)
Sensitivity -103 dBm (@ 1% PER; incl. antenna gain)
DirectConnect Functionality
Connectivity AT&T or Verizon LTE cellular
Security ANSI C12.22 128-bit AES/EAX (combined encryption/authentication)
Memory 40 KB
Clock Synch to LTE Network
Firmware Over-the-air upgradable
Power Outage & Restoration Reporting Aggregated real-time reporting
Compliance
Radio Emissions FCC Part 15 Class A
Industry Canada ICES-003 Class A
Device IDs FCC ID: RI7LE910NAV2
IC ID: 5131A-LE910NAV2
Safety
  • ANSI C37.90.1
  • ANSI C62.41
Metrology
  • ANSI C12.1
  • ANSI C12.18
  • ANSI C12.19
  • ANSI C12.20
  • ANSI C12.21
