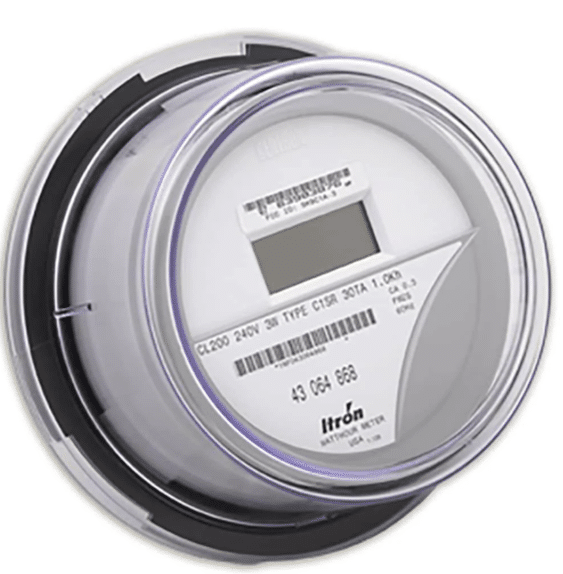

Centron C2SLD C12.19 Form 2S – CL200, 240V, with remote disconnect – HW3.5
$125.00
The Itron Centron II C2SLD (Form 2S, 240V, CL200) is an advanced residential smart meter built on the C12.19 open-standard data model. It is specifically designed for high-end residential monitoring and remote service management.
Technical Specifications:
- Form Factor (2S): Standard single-phase 3-wire residential socket mount.
- Voltage (240V): Rated for 240V residential service with overvoltage protection up to 480V.
- Class (CL200): Rated for continuous current up to 200 Amps.
- Accuracy Class: Typical accuracy of 0.3% (exceeds ANSI C12.20 Class 0.5 requirements).
- Hardware (HW 3.5): This revision typically includes updated circuitry for improved communication stability and enhanced memory for complex data logging.
Description
Key Features:
- Remote Disconnect Switch (C2SLD): The “D” in the model name indicates an integrated 200 Amp remote service switch. It is rated for 30,000 mechanical cycles (no load) and 5,000 cycles under full load.
- C2SL Module (Load Profile): The “L” indicates the Load Profile module, which provides 144K RAM to store up to eight channels of detailed interval data (e.g., usage patterns every 15 minutes).
- ANSI C12.19 Compliance: Uses an industry-standard communication protocol that allows for “plug-and-play” compatibility with various AMI networks and third-party software.
- Four-Quadrant Metering: Capable of measuring and displaying delivered energy (from grid), received energy (solar production), net energy, and reactive power (kVARh/VAh).
- Advanced Power Quality: Monitors on-board voltage to provide residential voltage profiling and end-of-line monitoring for utility troubleshooting.
Usage and Applications
- Service Management: Used by utilities to remotely connect or disconnect power during move-ins/move-outs or for non-payment without a field visit.
- Demand Response: The C2SLD supports load-limiting, where the utility can temporarily restrict a home’s power draw during peak grid stress instead of fully shutting it off.
- Solar/Net Metering: The bi-directional measurement makes it ideal for homes with renewable energy systems that need to track both energy consumption and surplus production.
