Calibration Pulse Processor (2401)
Easily calibrate any NextGen three-phase TESCO test board using your existing single-phase reference standards.
Key Features
- Compatible with TESCO’s MTB-3050, MTB, MQB3, and MEB test boards
- Calibrates NextGen equipment using three independent single-phase standards
- Works with TESCO calibration software to scale output pulses automatically for highest accuracy
- Combined Mode: Sums pulses from up to three single-phase standards into one output stream
- Double Pulse Mode: Issues a start pulse and end pulse based on a programmed pulse count
- Simple software interface for setup and result file generation
- All necessary cables included
Description

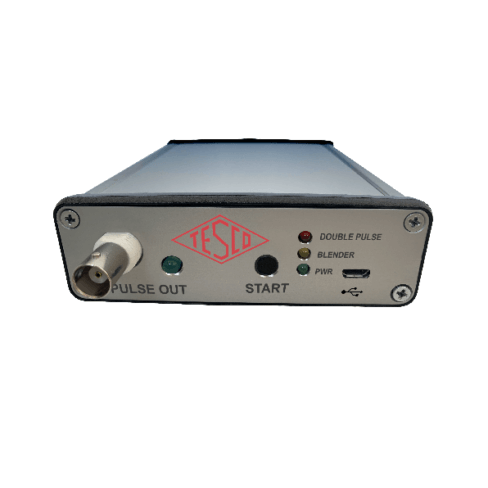

TESCO’s Calibration Pulse Processor (Cat. No. 2401) is the perfect solution for test labs looking to calibrate three-phase Next Generation test boards using their current single-phase reference standards. This adapter allows direct calibration of TESCO’s MTB-3050, MTB, MQB3, or MEB, streamlining the process with a dedicated software tool that automates pulse scaling and records results.
Designed for accuracy and ease of use, the processor features both Combined Mode and Double Pulse Mode to support varied testing preferences, and it includes all required cables to get started immediately
