SmartPole Meter Boxes (701, 702)

  • Catalog No. 701 – SmartPole Meter Box

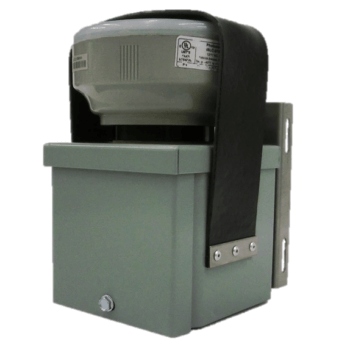

    TESCO’s Cat. 701 SmartPole Meter Box is a compact and field-ready enclosure built to support ANSI socket-based smart meters in overhead streetlight and utility pole applications. It mounts easily to either metal or wooden poles using the included bracket and strap kit. The 701 supports self-contained operation up to 5 amps and features a tamper-resistant lockable strap for added security.
  • Catalog No. 702 – SmartPole Meter Disconnect Box
    The Cat. 702 takes the functionality of the 701 one step further by integrating a fused disconnect switch, making it the ideal choice when disconnection capabilities are required. It retains all the same rugged, weather-ready features as the 701, ensuring easy deployment and long-term durability in pole-mounted metering applications
SKU: 701, 702 Category:
×

Description


Key Features

  • Compliant with ANSI C136.41 socket-based meter mounting
  • Designed for streetlight metering, telecom node metering, and other pole-mounted services
  • Compatible with smart meters rated up to 5A (meter not included)
  • Pole Bracket: Pole Strap Kit included for mounting to wood or metal poles
  • Marine-Grade HDPE Hold Down Strap
  • 3-pin meter receptacle
  • Tamper-resistant 1/4″ seal location
  • Riveted weather-sealed strap latch
  • Ground/bonding lug
  • NEMA 3R Enclosure suitable for outdoor conditions

Product Documents
