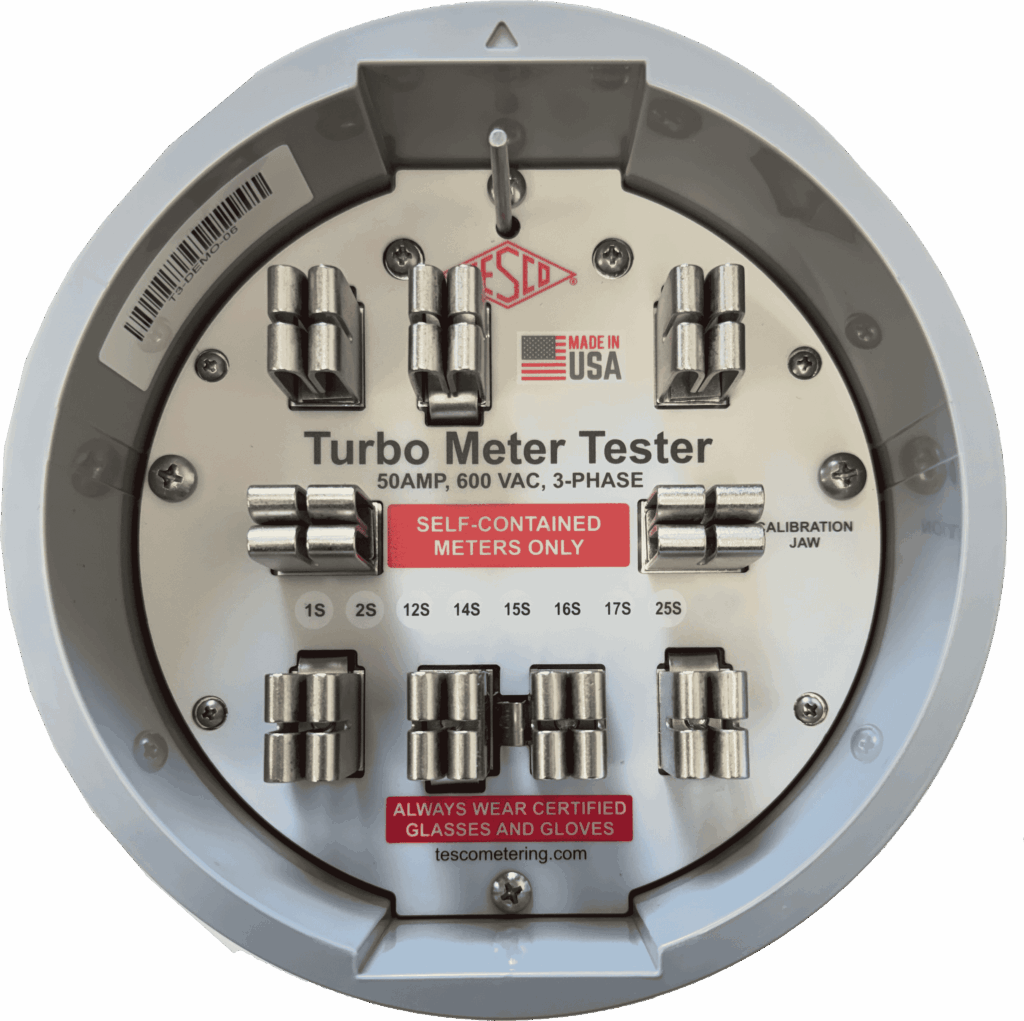

T3 Turbo Meter Tester
The Ultimate Portable Meter Tester for Fast, Reliable Field Verification.
Special Features:
- True Three-Phase Self-contained Meter Testing with Phantom Load: Unlike many field testers, the T3 provides true three-phase testing with built-in current synthesizers (0.1A-50A) and adjustable phase shift (0-360°), allowing technicians to simulate real-world load conditions without external equipment.
- Advanced Safety & Interlock System: The T3 safeguards technicians with a CAT IV rating, surge suppression, and a built-in interlock that prevents the jaws from being energized without proper meter insertion, delivering safe and dependable performance.
Description
The TESCO T3 Turbo Meter Tester is a lightweight, high-accuracy field tester for single-phase and three-phase self-contained meters. With 0.02% accuracy, true three-phase testing, phantom load capability, and advanced safety features, it ensures fast, reliable meter verification.
Key Features:
- True Three-Phase Self-contained Meter Testing: Accurately tests single-phase and three-phase self-contained meters in the field.
- Lightweight & Portable: Weighs under 6 lbs., making it the ideal on-the-go meter testing solution.
- Unmatched Accuracy: 0.02% for voltage and current, 0.04% for energy, ensuring precise meter verification.
- Fast & Efficient Field Testing: Instantly verify meter accuracy without removing it from service.
- Phantom Load Testing: Built-in current synthesizers provide controlled test loads for comprehensive accuracy checks.
- User-Friendly Design: Works with both ring and ringless meter bases, ensuring broad compatibility.
- Advanced Safety Features: CAT IV rating, surge suppression, and interlock systems to protect technicians.
- Wireless & PC Connectivity: Wi-Fi, Bluetooth, and Ethernet support for seamless test data management.
- Supports High-Speed Pulse Testing: Handles slow and fast optic pulses up to 2MHz for modern meter verification.
- Environmental Durability: Operates in extreme conditions from -4°F to 140°F (-20°C to 60°C) for reliable field performance.
- Rugged Pelican Case: To protect the unit from damage on site and during transport.
- Smart Phone Connectivity: Seamless smartphone control via our dedicated iOS and Android apps.
Specifications
| Unit | Details |
|---|---|
| Power Supply | 120V to 480V AC, with power consumption of ~100W (TBD). |
| Compatibility | Works with 1S, 2S, 12S, and 16S meter sockets (13S, 14S, 15S, 17S, 25S). |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C). |
Product Documents
Product Videos

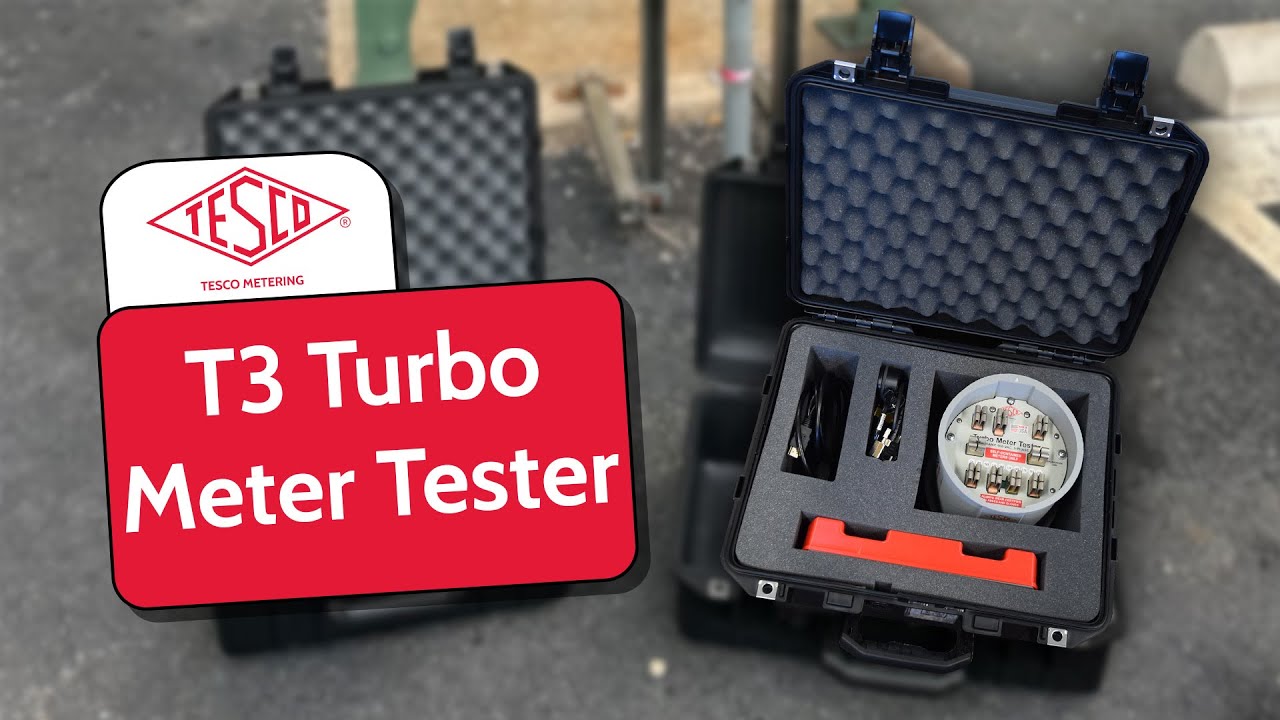

TESCO T3 Turbo Meter Tester
