High Voltage Non-Contact Current Probe

$7,320.00Add to cart

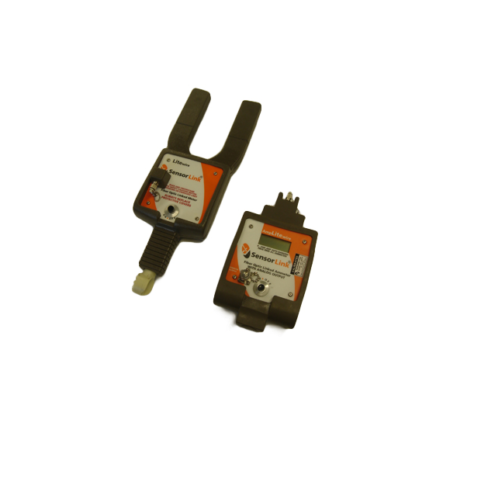

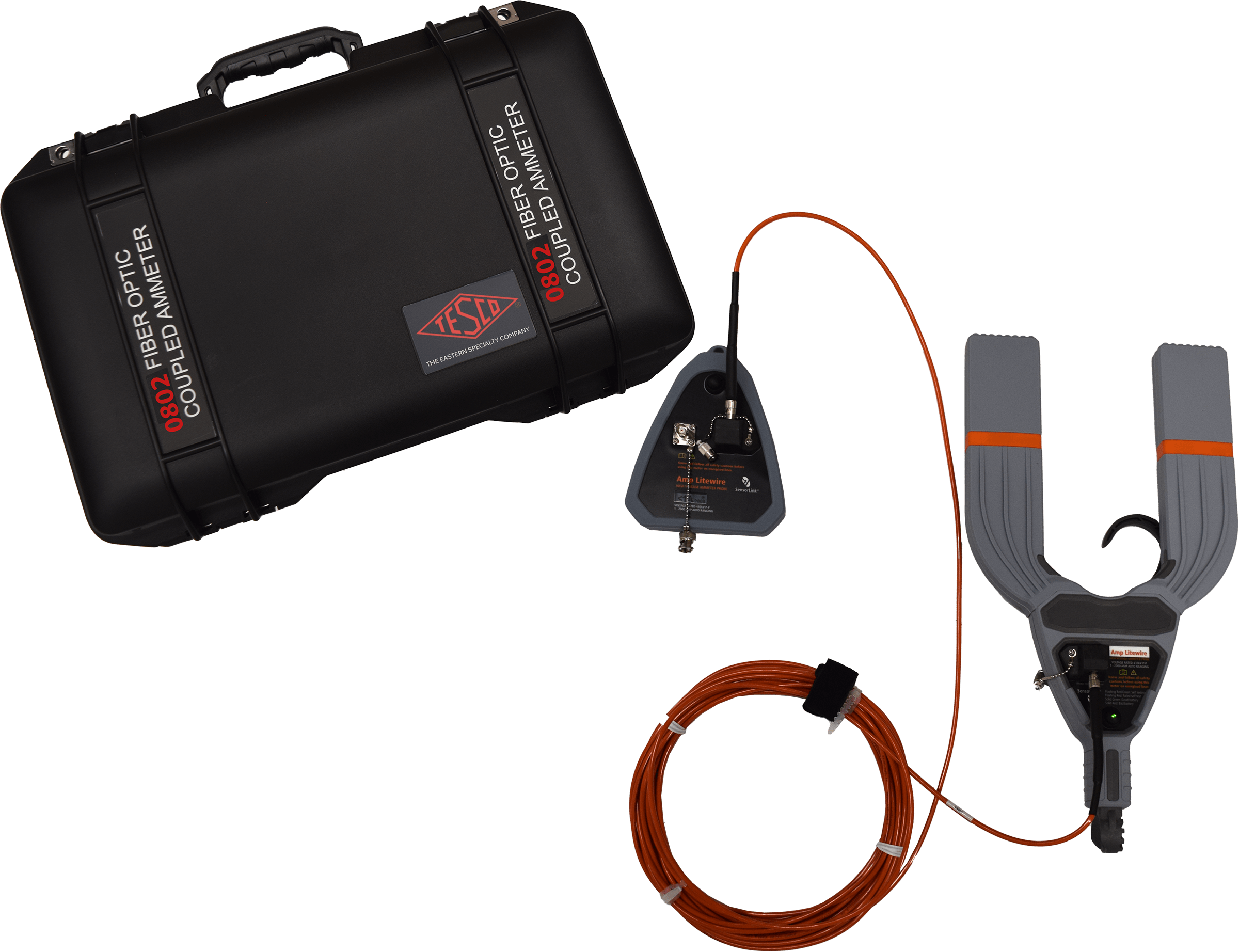

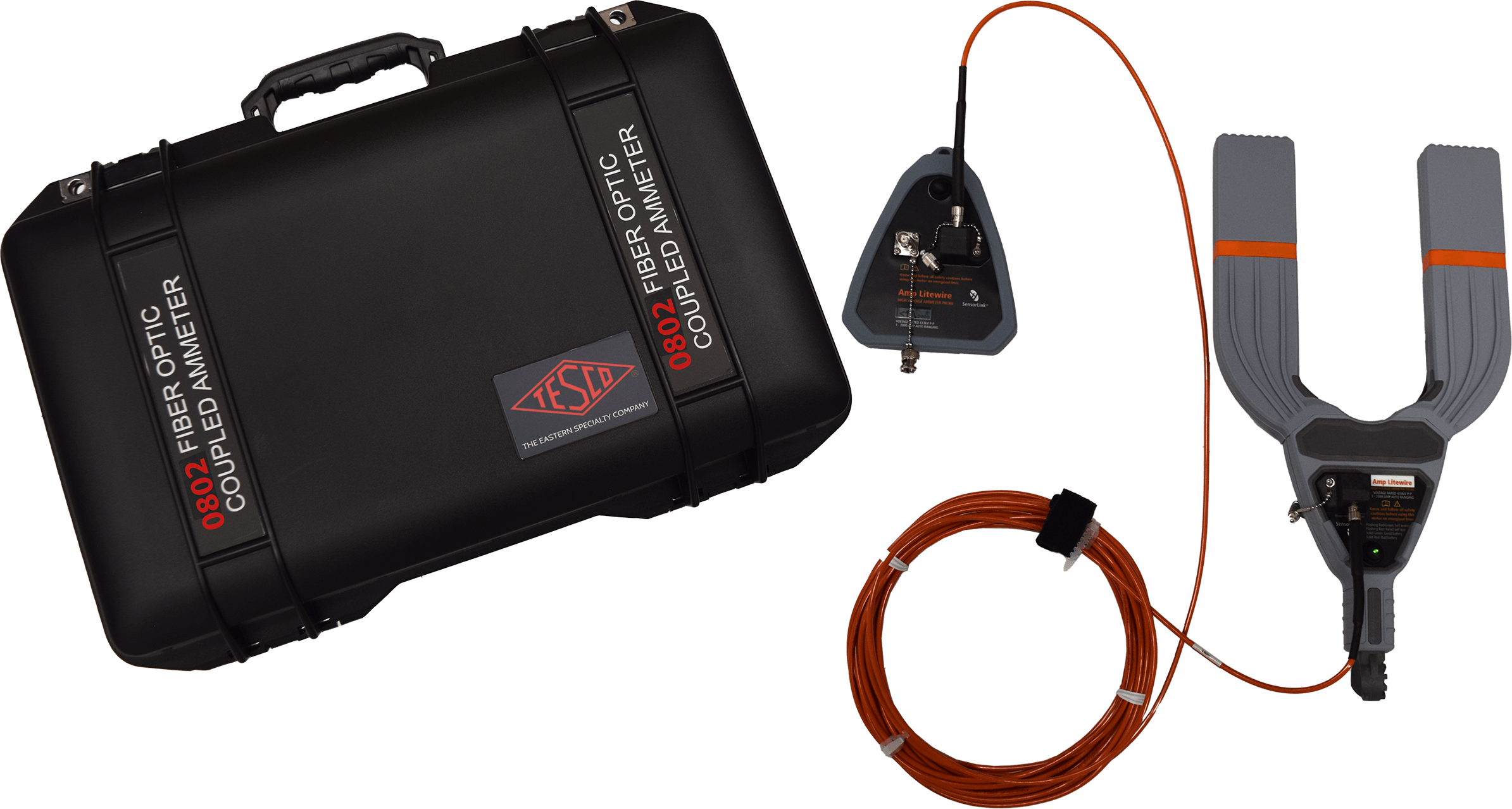

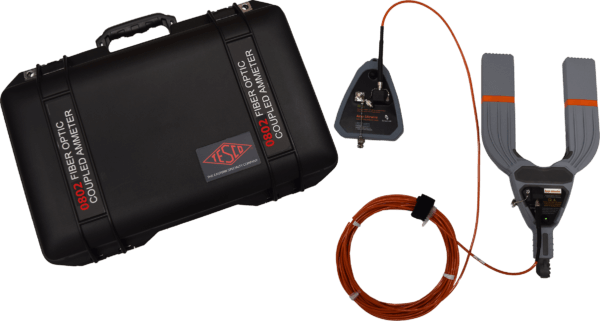

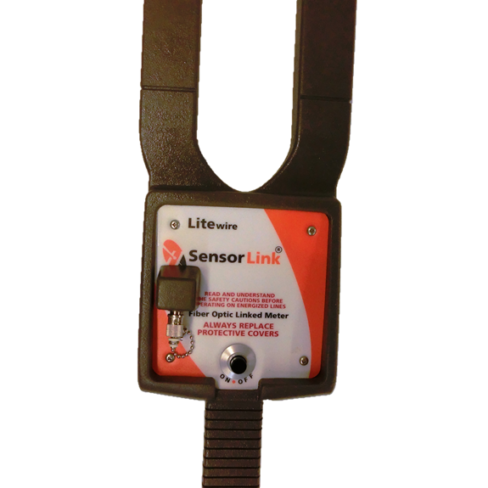

The TESCO High Voltage Non-Contact Current Probe (Catalog No. P02-802) was developed using current sensor technology. It is a two-piece, True RMS ammeter with a fiber optic link between the high voltage sensor and the readout at ground potential. The sensor is mounted on a hotstick and slipped over a high voltage line.

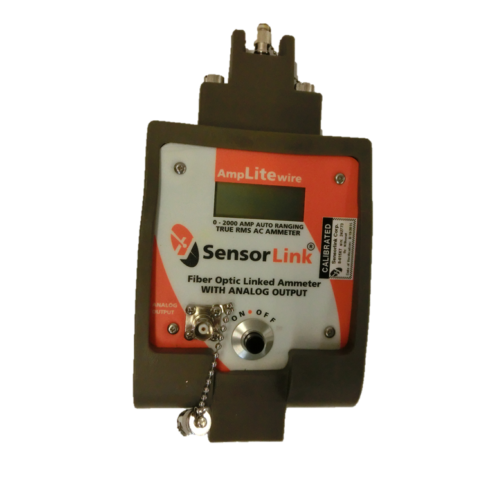

A fiber optic cable connects the sensor to a receiver unit at ground potential, which contains the digital readout and an analog output. The instrument has no moving parts and does not require clamping onto the wire. The molded urethane housings are water resistant and will withstand high physical impact.

The fiber optic cable is physically rugged, while providing the high-speed data path required for digital waveform transmission from the sensor to the display unit. It also is the high voltage insulator between the two units and is tested to provide 100 kV isolation per foot.

The analog output is the unique feature of this instrument. It is a reproduction of the high voltage current waveform, accurate to approximately the 50th harmonic, but available as a 0-2 volt AC signal at ground. This allows the use of many sophisticated low voltage instruments, such as scopes, waveform acquisition recorders, analyzers, and other analysis instruments which would previously not be usable at high voltage.

Accessories

Features

Range of Operation

  • Current: 1-2000 True RMS Amps
  • Voltage Environment up to 150 kV
  • Accuracy: ±0.75 ±1mV (1-2000A)
  • Phase: ±1 Degree (1-2000A)

Amp Sensor Opening

  • Wide Sensor Opening Width: 3.86 in, 9.84 cm



Resolution: ± 0.1 mV

  • 20 Ampere Measurement
    • Range: 1-19.99 A, 100 mV RMS per amp
  • 200 Ampere Measurement
    • Range: 20-199.9 A, 10 mV RMS per amp
  • 2,000 Ampere Measurement
    • Range: 200- 2,000 A, 1 mV RMS per amp



Output Impedance

  • 50 ohms, minimum



Frequency Response

  • 3000 Hz or to the 50th Harmonic



Fiber Optic Cable

  • Length 40’, 12.19 m
  • Isolation 100 kV per foot, 500 kV max



Mechanical

  • Wide Sensor Weight: 6.0 lbs, 2.73 kg
  • Housing: Shock & water resistant molded urethane
  • Hot stick Mounting: Universal chuck adapter (hot stick not included)
  • Battery: Two each 9V alkaline or lithium; one per unit
  • Battery Life: Minimum 4 hours of continuous use
  • Operating temperature: -22° to +140° F, -30° to +60° C
  • Lithium battery required for use below -4°F, -20° C

Equipment Documentation

pdf-icon

P02-0802 High Voltage Non-Contact Current Probe

download Download
