Third Rail Voltage Tester

$503.36Add to cart

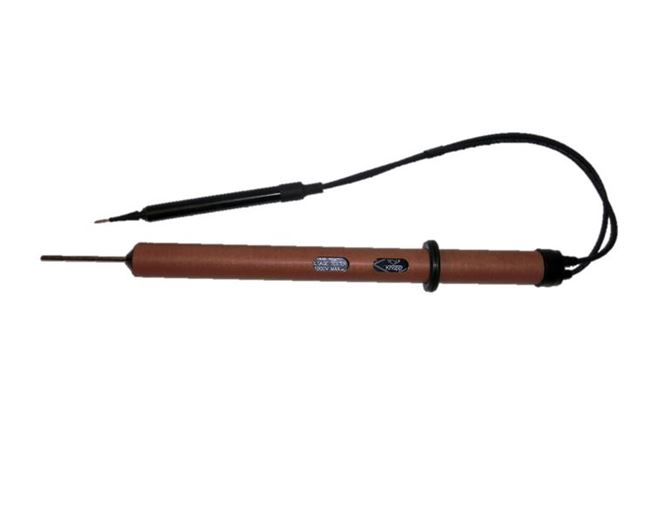

The Knopp 4E2-1 Voltage Tester is designed to detect electrical potential (voltage) between the third rail and ground on high voltage electrified transit systems. Two, redundant neon bulbs are used to indicate the presence of voltage.

The prod handle and the tester housing are both made from moisture- and oil-resistant laminated phenolic. The prod tips are made from stainless steel. The tester housing includes a rubber hand guard to guide the operator in proper placement of his or her hand. There are no exposed metal parts other than to the two prod tips. All internal connections are soldered.

The 4E2-1 tester uses two independent circuits to detect the presence of voltage. This provides double safety protection for the operator. The neon indicating lamps are mounted in specially shielded cavities within the instrument so that the neon glow indication can be unmistakably seen – even under the most adverse conditions of bright, direct sunlight on the instrument during tests.

The 4E2-1 tester was originally developed for the BART (Bay Area Rapid Transit) System in San Francisco/Oakland, CA. It has since gained wide acceptance as a reliable instrument for use in detecting the presence of third rail voltage.

Additional Services Offered include:

  • Certificate of Compliance to Manufacturer’s Functionality
  • Z540.1 Calibration Certificate with Traceability

Accessories

Features

  • Can be used on AC or DC
  • Can be used up to 1,500 volts
  • Can span a distance of up to four (4) feet
  • Uses a dual neon lamp principle for double safety protection

Equipment Documentation

pdf-icon

Knopp 4E2-1 – Voltage Tester

download Download
pdf-icon

Knopp 4E2-1 – Voltage Tester (Spanish)

download Download
pdf-icon

Knopp 4E2-1 – Voltage Tester (Operating Instructions

download Download
