Make-To-Order Equipment - Transockets
TESCO TRANSOCKETS MAKE-TO-ORDER EQUIPMENT
TESCO TRANSOCKETS MAKE-TO-ORDER EQUIPMENT
TESCO TRANSOCKETS MAKE-TO-ORDER EQUIPMENT

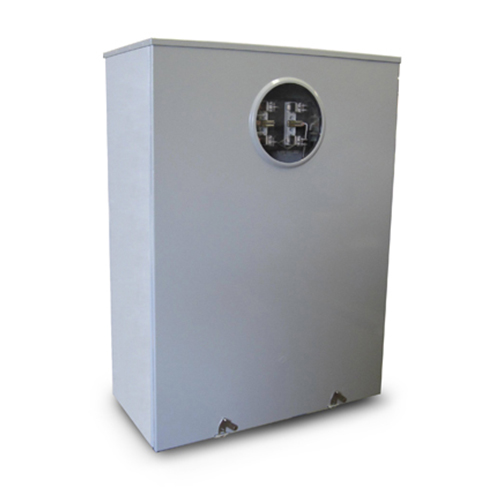

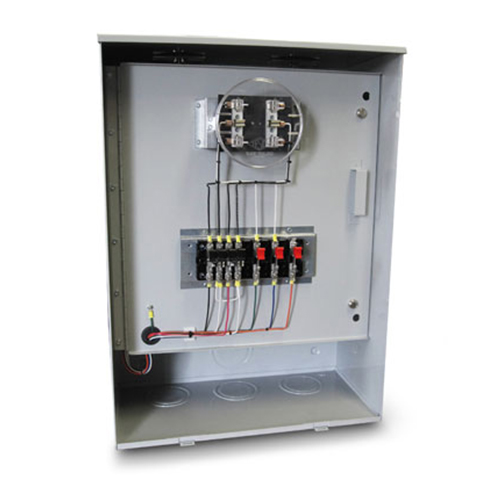

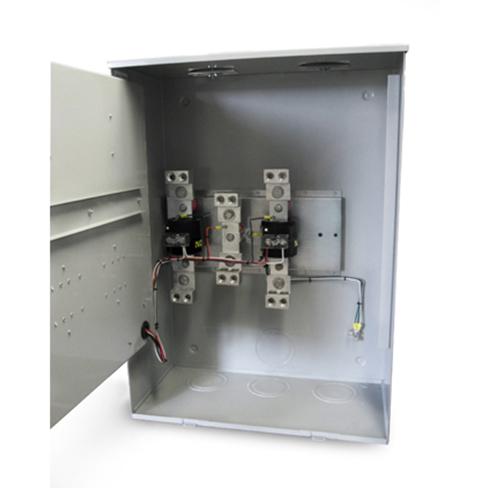

TESCO Single & Three-Phase Transockets offer the flexibility of a single enclosure for current transformer metering and allow mounting of current transformers and a test switch. By combining the meter socket and transformer cabinet, TESCO provides a cost-effective metering solution.
Read MoreTESCO Transockets are available with 4, 5, 6, 8, 10, 11, 13 or 15 terminal meter sockets, with services up to 600 amps. TESCO Transockets are suitable for overhead and underground service and are prewired to your specifications, with your choice of current transformers and voltage transformers (if applicable).
Contact a TESCO product specialist to discuss your Transocket specifications.
Read LessEquipment Documentation
Specifications
Meter Sockets
4, 5, 6, 8, 10, 11, 13 & 15 terminal meter sockets available
Test Switches
1 through 10 pole configurations available, built to customers specifications for layout, connector options and handle color coding. Available in either plated or un-plated material. Rated to 600 Amps. Available with and without clear or black Lexan covers
Enclosures
14GA Powder Coated Galvanized Steel (16GA Cover); Aluminum enclosure also available
Enclosure Dimensions
24" x 33" x 12" Standard(custom enclosures available)
Ground Stud
Pem-type stud with lock washer and hex nut
Knock Outs
Four - 3+3.5+4 electrical knock outs
Hub Openings
Two - 4" with cover plates
Wiring
To customers specifications
