Make-to-Order Equipment - Transformer-Rated Pre-Wired Meter Enclosures

TESCO Transformer-Rated Pre-Wired Meter Enclosures Make-to-Order Equipment
UL Listed

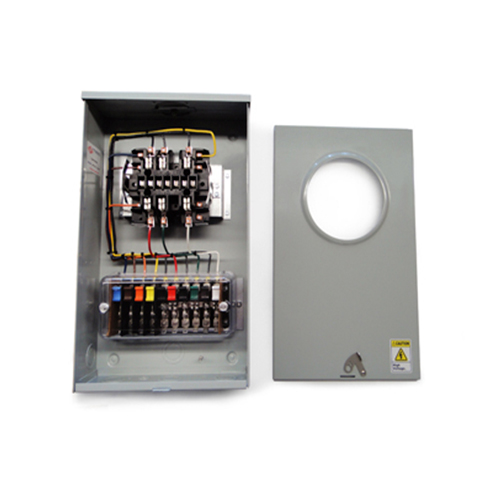

TESCO Transformer-Rated Pre-Wired Meter Enclosures are built with the TESCO tradition of quality and durability. TESCO enclosures are designed for use in commercial and industrial metering installations where voltage ratings of 480 and above are required. The enclosures are available with ringless, single piece or two piece covers and can be pre-wired between the test switch and socket to meet your exact specifications.

TESCO Pre-Wired Meter Enclosures are UL Listed.


Meter Sockets
5, 6, 8, 13 and 15 terminal sockets available. Material - electrical phenolic and plated copper.
Test Switches
4 through 10 pole configurations available, built to customers specifications for layout, connector options and handle color coding. Available in either un-plated or plated material. Rated to 600 Amps. Available with and without clear or black Lexan covers.
16GA Powder Coated Steel
Ground Stud
Pem-type stud with lock washer and hex nut
Knock Outs
Six - 3/4" x 1" x 1-1/4" in bottom, back & sides; one 1/4" x 5/8" x 7/8" in bottom
Available Cover Options
Single Piece and Two Piece Sealing Options: Ring and Ringless
To customer specifications
