Catalog No. 2450-CAL-30 - MTB Calibration Adapter

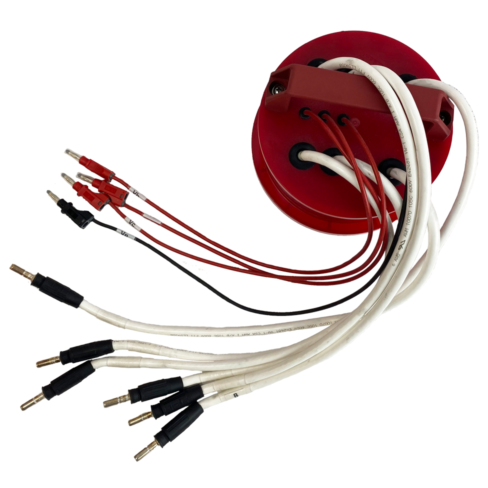

Cat. 2450-CAL-30-DTS

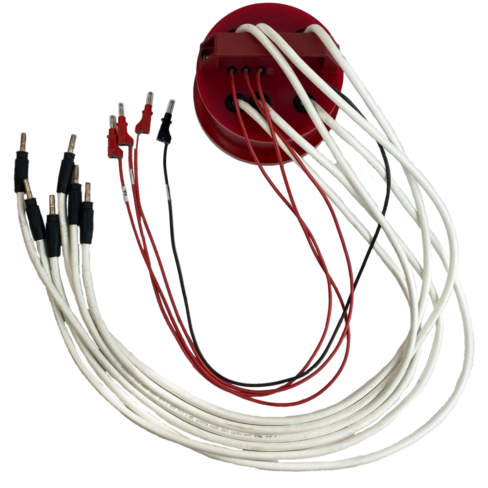

Cat. 2450-CAL-30-MTB
The MTB Calibration Adapter (Catalog No. 2450-CAL-30)is a socket adapter that’s designed to bring phase A, B, and C current and potentials of a TESCO Multi-Position Test Board to an external RD-30 reference standard for calibration of the Test Board.
For TESCO Desktop Stations, use the Catalog No. 2450-CAL-30-DTS.
Features
- Safety terminals on cover to protect current and potential wires
- Sturdy handle for easy insertion and removal
Equipment Documentation
Specifications
Meter Form
9S
Enclosure
UV stabilized plastic
Voltages
600V
Current Range
0-66.7A
Rating
600V, 66.7A
