TESCO K-Base Test Board Adapter Catalog No. 1180
TESCO K-Base Test Board Adapter Catalog No. 1180

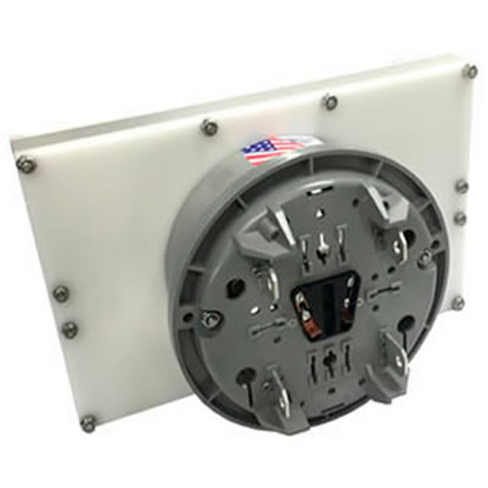

The TESCO K-Base Test Board Adapter allow quick, convenient testing of self-contained K-Base meters on test boards designed for socket type meters. The K-Base Test Board Adapters are designed for single phase (Catalog No. 1180-2) and polyphase (Catalog No. 1180-4).
The K-Base Test Board Adapters are equipped with two clamps located on the front of the adapter, which will secure the meter to the base.
Features
- Easy-to-use
- For use on mechanical or solid state meters
- Optional acrylic shield protects the user from any arcing that may occur (Cat. 1180-2-S and 1180-4-S)
Equipment Documentation
Specifications
Single-Phase Meter Forms
2K
Polyphase Meter Forms
12K, 14K, 15K, 16K, 27K
Current
50 Amps max
Voltage
up to 480 VAC
Dimensions
12" x 7-3/4" x 9-5/8" (L x W x H)
Weight
8 lbs
