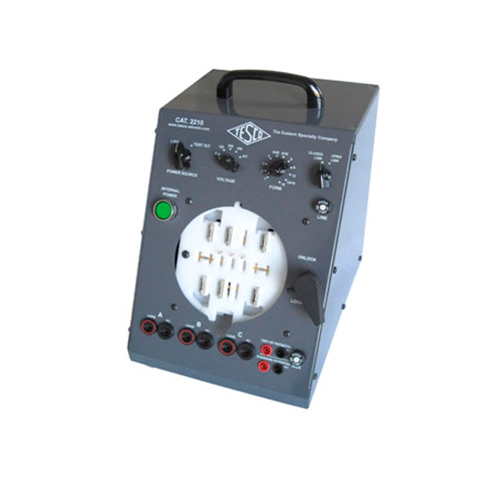

Catalog No. 2210 - Desktop Test Interface Station

TESCO’s new Desktop Test Interface Station (Catalog No. 2210) provides metering professionals with exceptional testing flexibility. The Test Interface Station is ergonomically designed for meter technicians working in a lab or a desktop, yet still rugged for field use. The Test Interface Station includes a zero insertion force (ZIF) meter socket, voltage selection, form selection, open/closed-link selection and bi-directional cabling to power a load box/test kit & connect test standard potentials. When combined with a test kit/test standard and powered via 120 VAC, the Test Interface Station creates a single position, stand-alone, meter accuracy testing device for various socket based meters (both mechanical & solid-state).

The Desktop Test Interface Station, with the proper load box, boasts a 50 amp max current input and operates on voltages up to 480V. An optional built-in load is also available, which will provide 5 or 30 amps, or you could choose the internal load which provides 0.5 amps. With the optional disconnect operation (only functional when powered via 120 VAC/inverter), you’ll be able to conduct all required meter testing while at your desktop (or in the field).

TESCO’s Desktop Test Interface Station has all the functionality of the Desktop Meter Stations and can be used as a programming station, a single meter evaluation station, or a test bed for checking meter features and anomalies. And with the on-board meter socket, you’ll eliminate all the adapters needed for transformer-rated and self-contained testing.

All Desktop Test Interface Stations are built with the TESCO tradition of reliability and ruggedness.

Accessories

Cable Sets

Pure Sine Wave Inverter

Streetlight Meter Adapter

Diamond Level Support

UtiliCart

Equipment Documentation

GET THE PDF - Desktop Test Interface Station

Specifications

Power Source

120 VAC, with detachable 10' cord or TESCO Field Test Kit (not included)

Internal Power Supply

250 VA Transformer (Standard Model); 500 VA Transformer (Disconnect Model) - 250 VA Transformer (with taps up to 480 VAC) Both with taps up to 480 VAC

Meter Test Current

50 Amps max

Meter Socket Rating

600 Volts

Meter Forms

1, 2, 3, 4, 5/45, 6/36, 8,9, 12, 14, 15, 16

Voltage

0, 120, 208, 240, 277, 480 (480 is an optional feature); custom voltages available

Potential Connections

Four, 5 Amp panel-mount sockets (4mm sheathed banana plug connectors)

Current Connections

Six, 50 Amp panel-mount sockets (6mm connectors)

Dimensions

12.5" x 10" x 12.5" (W x H x D)

Weight

26.5 lbs (Standard Model); 32 lbs. (Disconnect Model)
