Catalog No. 223 - Cable Seals

TESCO Cable Seals Catalog No. 223

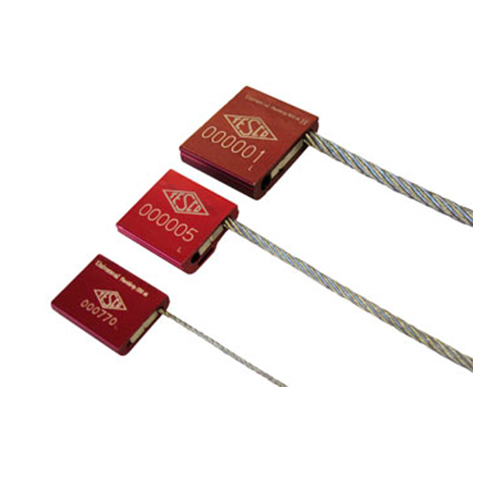

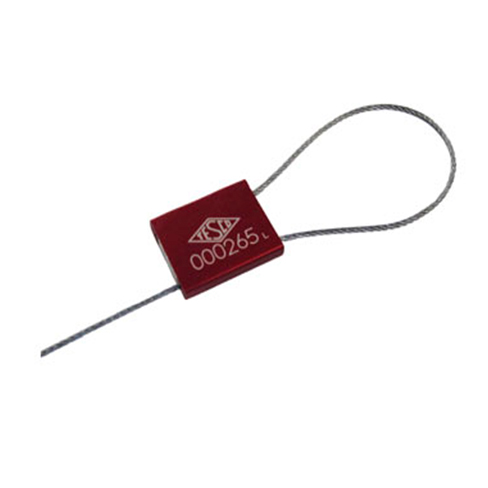

TESCO Cable Seals (Catalog No. 223) are used primarily for securing CT and PT cabinets, in addition to metering enclosures. TESCO Cable Seals are flexible, tamper-proof, user-friendly and customizable. Our Cable Seals are available with a range of cable diameters from 1/16″ to 1/5″ and customized lengths to suit any application.

Features

Highly resistant, irreversible steel locking mechanisms with high pulling loads
1/16" - 1/5" cable diameter, non pre-formed galvanized aircraft cable
Tamper evident and impact resistant
High level of customization - cable lengths, imprint, sequential numbering

Equipment Documentation

Specifications

Casing

Aluminum Alloy

Locking Mechanism

Heat-treated, high carbon steel

Springs

Heat-treated spring steel

Cable

Non-preformed galvanized aircraft cable

Cable Diameter

1/16" (Catalog No. 223-1)
1/8" (Catalog No. 223-2)
1/5" (Catalog No. 223-3)

Cable Length

Standard 12" (custom lengths available)

Standard Colors

Red
Blue

Printing

Engraved or stamped
Sequentially numbered or barcoded
Customer ID or logo

Tensile Strength

1/16" (Catalog No. 223-1) - Above 440 lbs. pulling load
1/8" (Catalog No. 223-2) - Above 1322 lbs. pulling load
1/5" (Catalog No. 223-3) - Above 4200 lbs. pulling load

Packaging

200/Carton (minimum order requirement - 5,000 seals)
